Castle Creations 1700 Series 40mm Motor Cooling Fan
Sale price
$19.95
Regular price
$24.95
Designed for use with: 060-0082-00 1717-1260Kv Brushless Sensored Motor 060-0081-00 1717-1650Kv Brushless Sensored Motor 060-0091-00 1721-2400Kv Brushless Sensored MotorAble to fit two Shrouds 060-0100-00 1721-1260Kv Brushless Sensored MotorAble to fit two Shrouds The Castle Creations 1700 Series 40mm Motor Cooling Fan provides ample cooling for the most demanding of situations....
| Designed for use with: | |
|---|---|
| 060-0082-00 | 1717-1260Kv Brushless Sensored Motor |
| 060-0081-00 | 1717-1650Kv Brushless Sensored Motor |
| 060-0091-00 | 1721-2400Kv Brushless Sensored Motor Able to fit two Shrouds |
| 060-0100-00 | 1721-1260Kv Brushless Sensored Motor Able to fit two Shrouds |

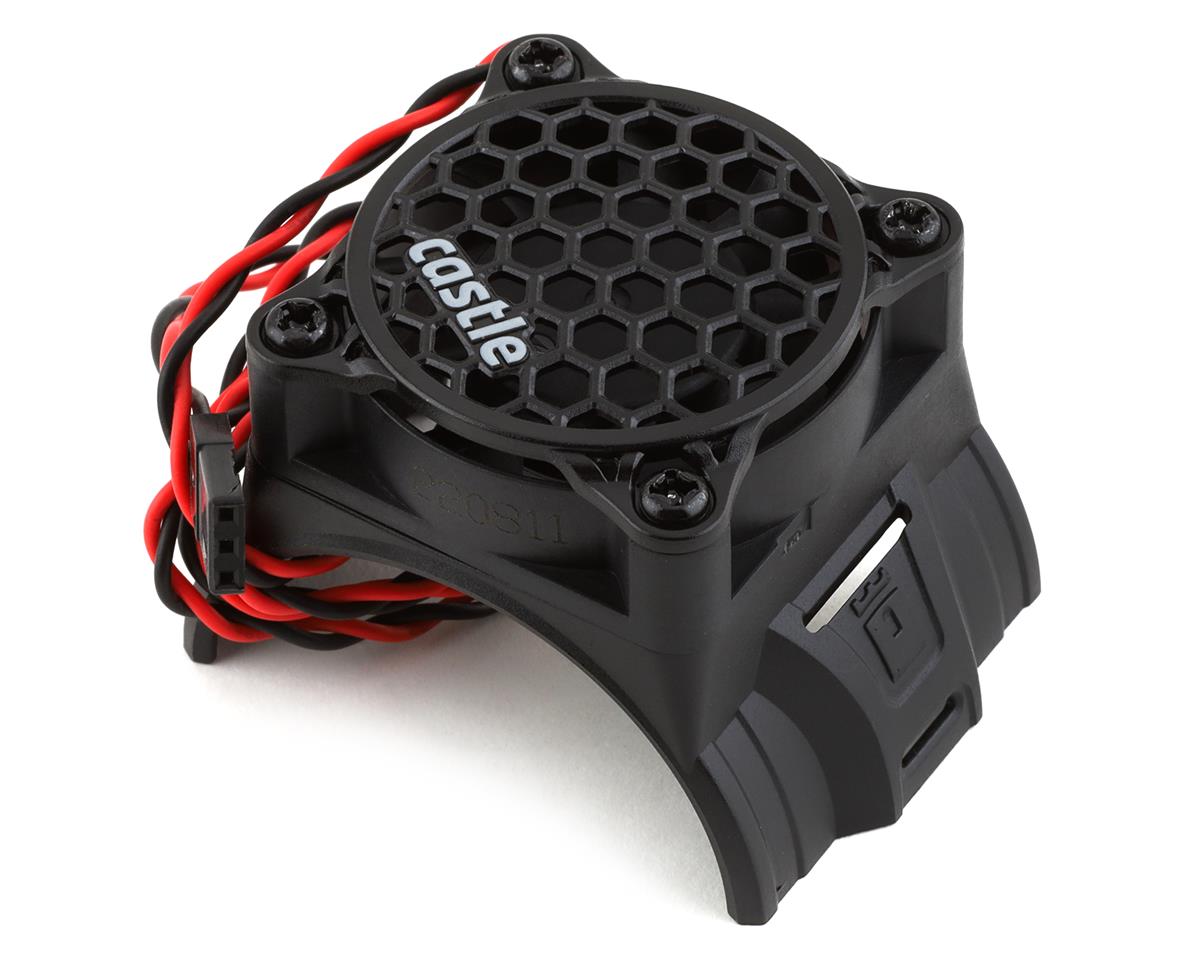

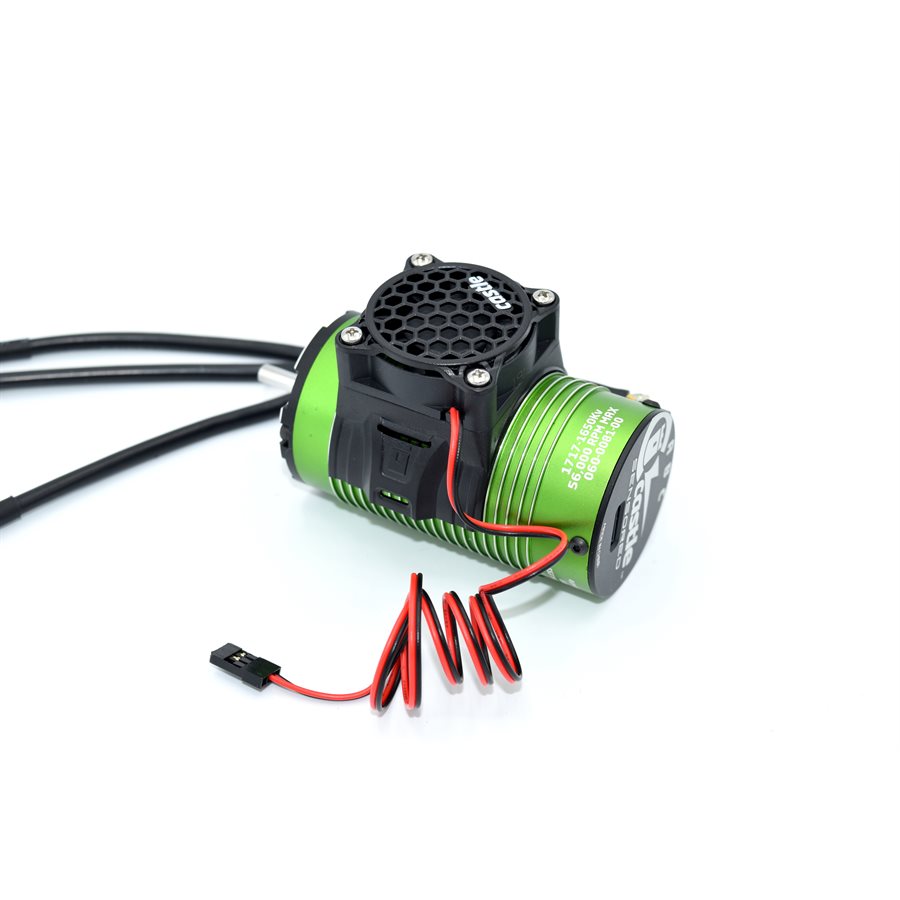

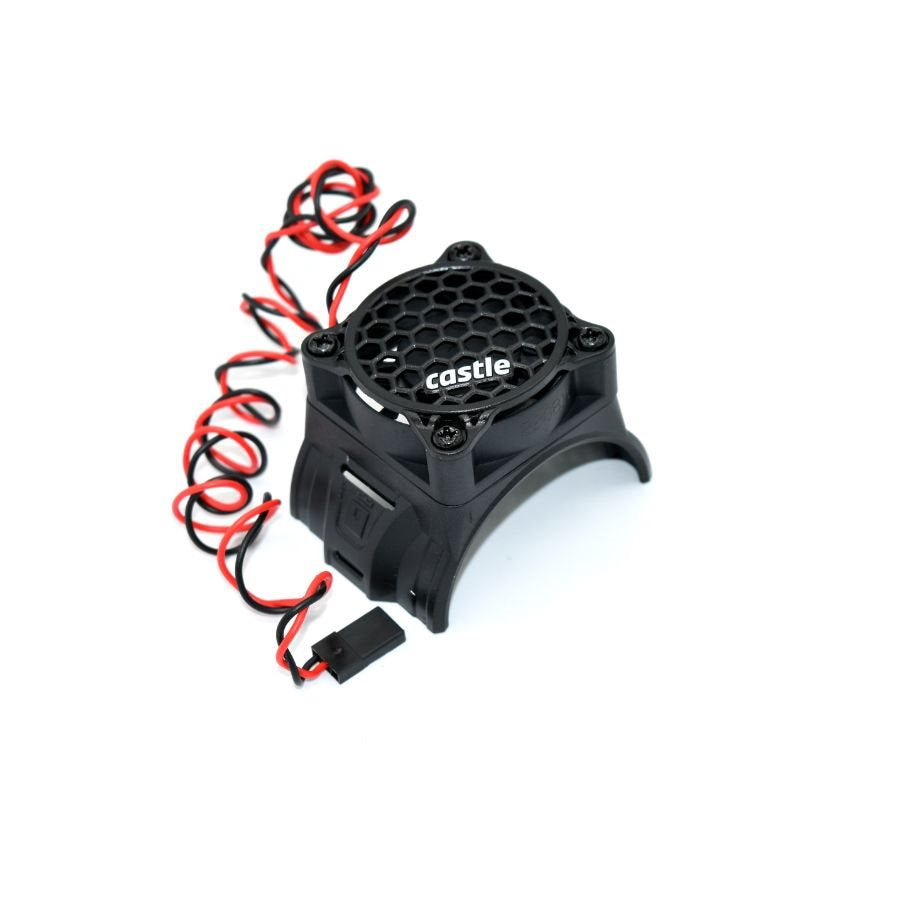

The Castle Creations 1700 Series 40mm Motor Cooling Fan provides ample cooling for the most demanding of situations. With the ability to plug into a traditional receiver port this dual fan setup is an easy addition to aid in cooling for Castle 1700 (or 46mm diameter) motors. Simply slide the mount over your motor and secure it with two zip ties and you are ready to go!
NOTE:
- Taller optional 40mm fans can be attached with longer mounting screws.
- This product is for supplemental cooling purposes only, and should not be used to push the motor beyond its recommended limits or cover up heating issues caused by your setup. If you have any questions on how to lower your motor temperature please contact Castle Creations tech support. The temperature drop will vary depending on setup.
Specifications:
Maximum Input Voltage: 8.4v
Maximum RPM: 10,000
Fan Size: 40mmx40mmx7mm
Waterproof: No, remove before exposing fans to moisture.

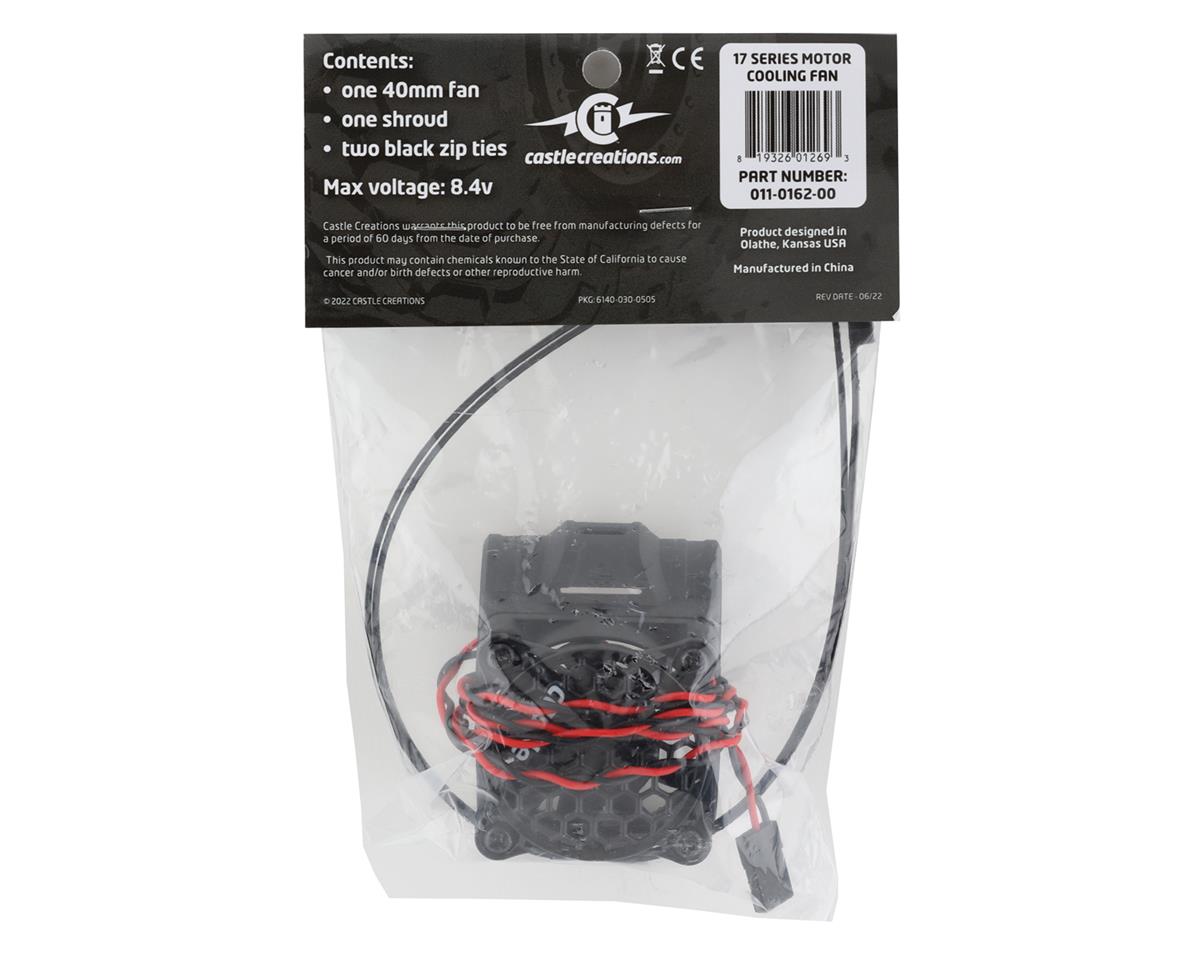

Includes:
- (1) 40mm Fan Installed in Plastic Shroud
- (2) Black Zip Ties
