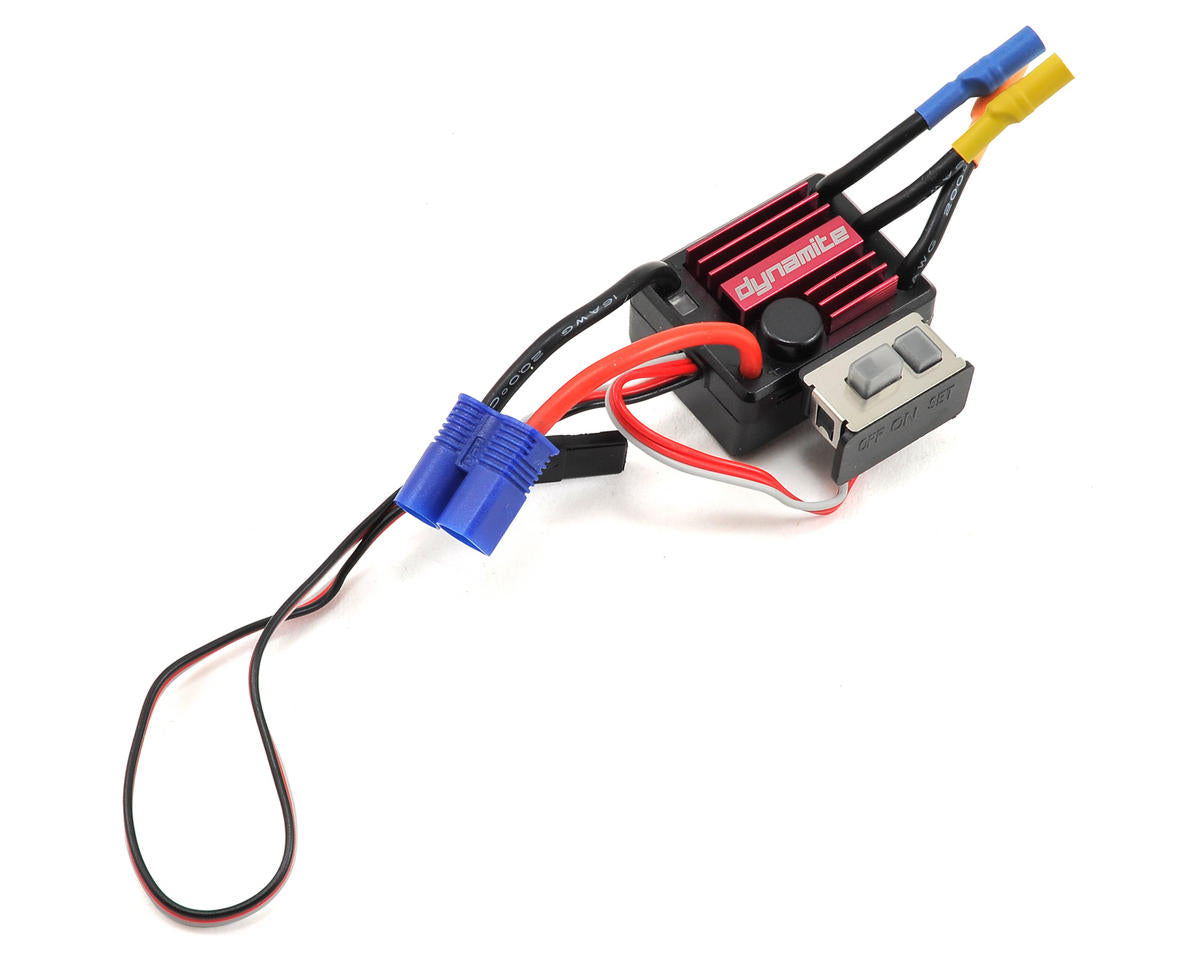

This is the Dynamite Tazer 25A Mini Waterproof Brushless ESC.
Features:
-
Waterproof
- 2-3S LiPo and 6-9 Cell NiMH Compatible
- Programmable
- 25A Max Current
- Forward and Reverse
Specifications:
Forward: Yes
Reverse: Yes
Brake: Yes
Time Delay Brake: Yes
Continuous Maximum Current: 25A
Input Voltage: 7.4–11.1V Li-Po; 7.2–12.6V Ni-MH/Ni-Cd
Input Connector Types: EC3
Output Connector Types: 3.5mm bullet
Motor Limit: 2040 size or similar
Momentary Peak Current: 90A
Length: 1.42 in (36mm)
Width: 1.10 in (28mm)
Height: 0.83 in (21mm)
Weight: 1.34 oz (38 g)
BEC Voltage: 6V
Overload Protection: Yes
Full On Resistance: .005 Ohm
Wire Gauge: 16AWG
Auto Cutoff: Yes
- COMPATIBILITY:
- Losi Mini 8IGHT AVC
- Losi Mini 8IGHT-T
- Losi Mini Desert Truck 4wd
