EcoPower WP115T Low Profile Waterproof High Torque Metal Gear Servo for 1/10 2wd Buggies, Drift Cars & Shift/Dig

Name: EcoPower WP115T Low Profile Waterproof High Torque Metal Gear Servo for 1/10 2wd Buggies, Drift Cars & Shift/Dig
Brand: ECO Power
SKU: WP115T
Price: 43.99 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

*NOTE: Warranty does not cover stripped gears or damage caused by abuse.

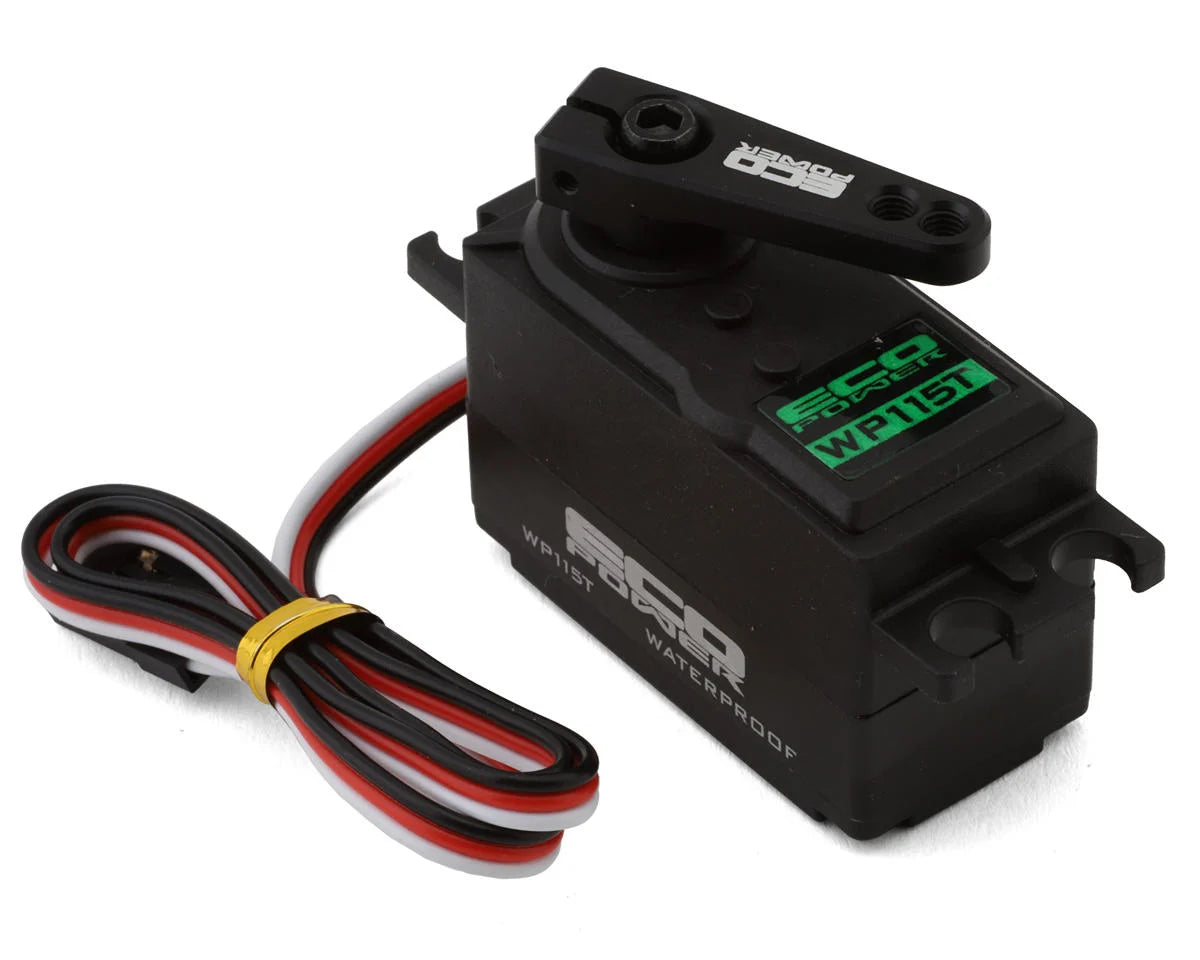

The EcoPower WP115T Low Profile High Torque Waterproof Metal Gear Servo is an excellent option when you need an affordable, high-voltage, low-profile servo. The EcoPower 115T servo has been designed for 1/10 2WD Buggies, 1/10 Drift Cars or as a Shift/Dig servo. The servo features smooth ball bearing control and a durable, metal gear drivetrain. Package includes one servo, one servo mount set, five molded servo horns and hardware.

Features:

Affordable option for 2WD applications or as a shift/dig servo
178 oz-in of torque @7.4V, and .08/60° sec transit speed
Waterproof
Digital circuitry
Cored DC motor
All-metal gear drivetrain

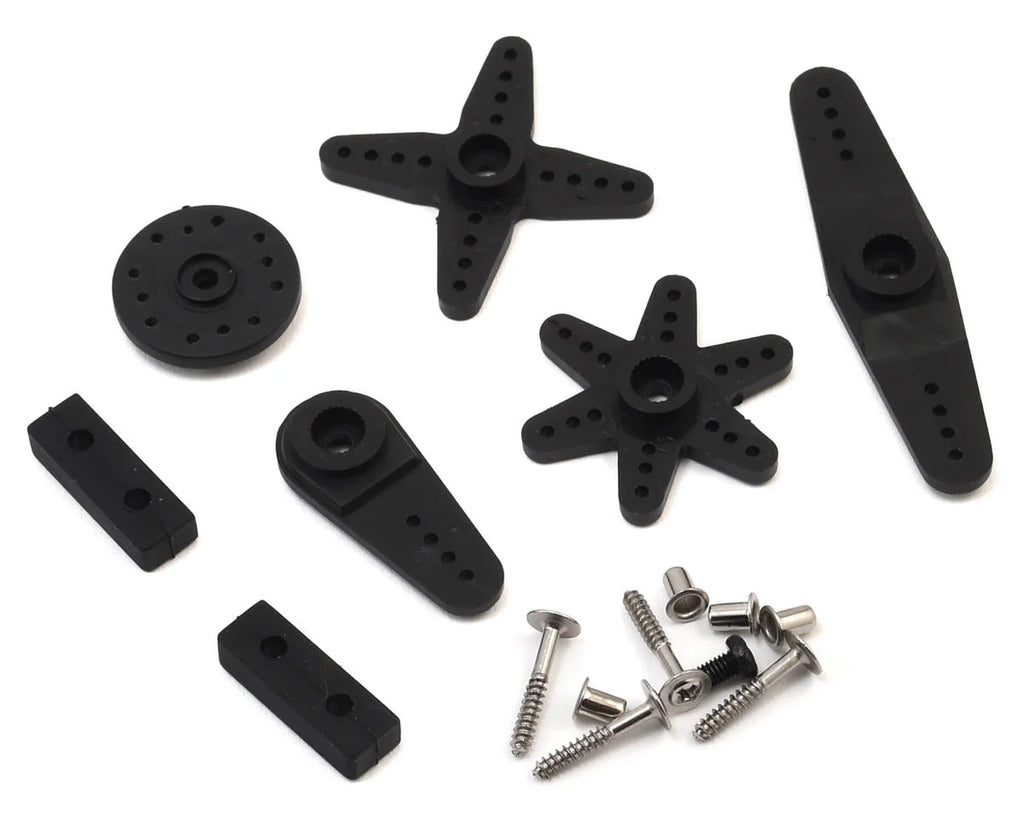

Includes molded star, 4-way, dual, single, and round arm type servo horns and mounting hardware
1 Year warranty against manufacturer defects*

Servo Model	115T Low Profile
Recommended Application	1/10 On-Road & Off-Road
Waterproof	Yes
Operating Voltage	4.8V - 7.4V
Operating Speed @ 4.8V	0.13/60° sec
Operating Speed @ 6.0V	0.10/60° sec
Operating Speed @ 7.4V	0.08/60° sec
Dynamic Torque @ 4.8V	108 oz-in (4.4 kg-cm)
Dynamic Torque @ 6.0V	127 oz-in (6.4 kg-cm)
Dynamic Torque @ 7.4V	178 oz-in (12.8 kg-cm)
Motor Type	Cored DC
Output Shaft	25 Tooth
Gears	Metal
Weight	44.5g
Dimensions	41.2x20.0x32.8mm (LxWxH)

NOTE: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance. For more information on End Point Adjustments, please watch the video below.
