Description

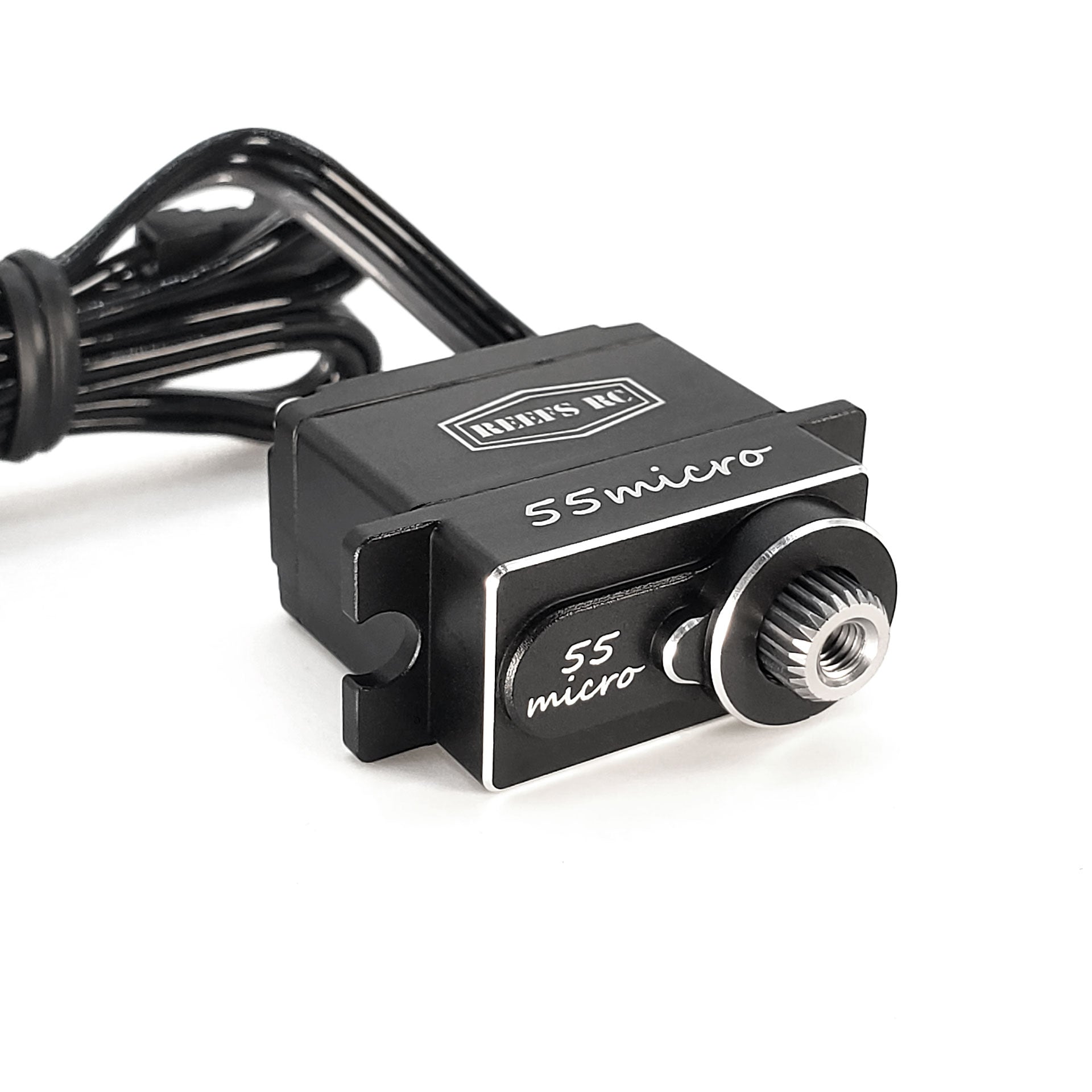

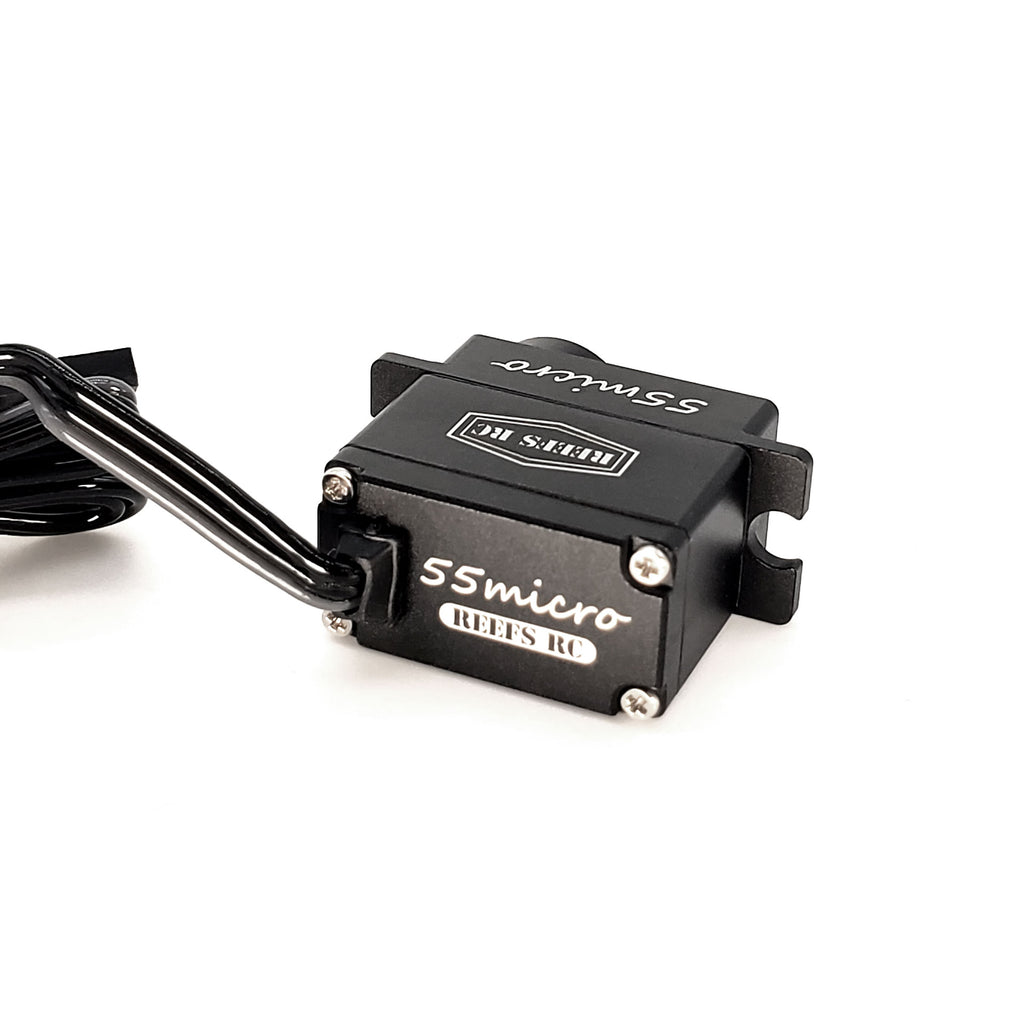

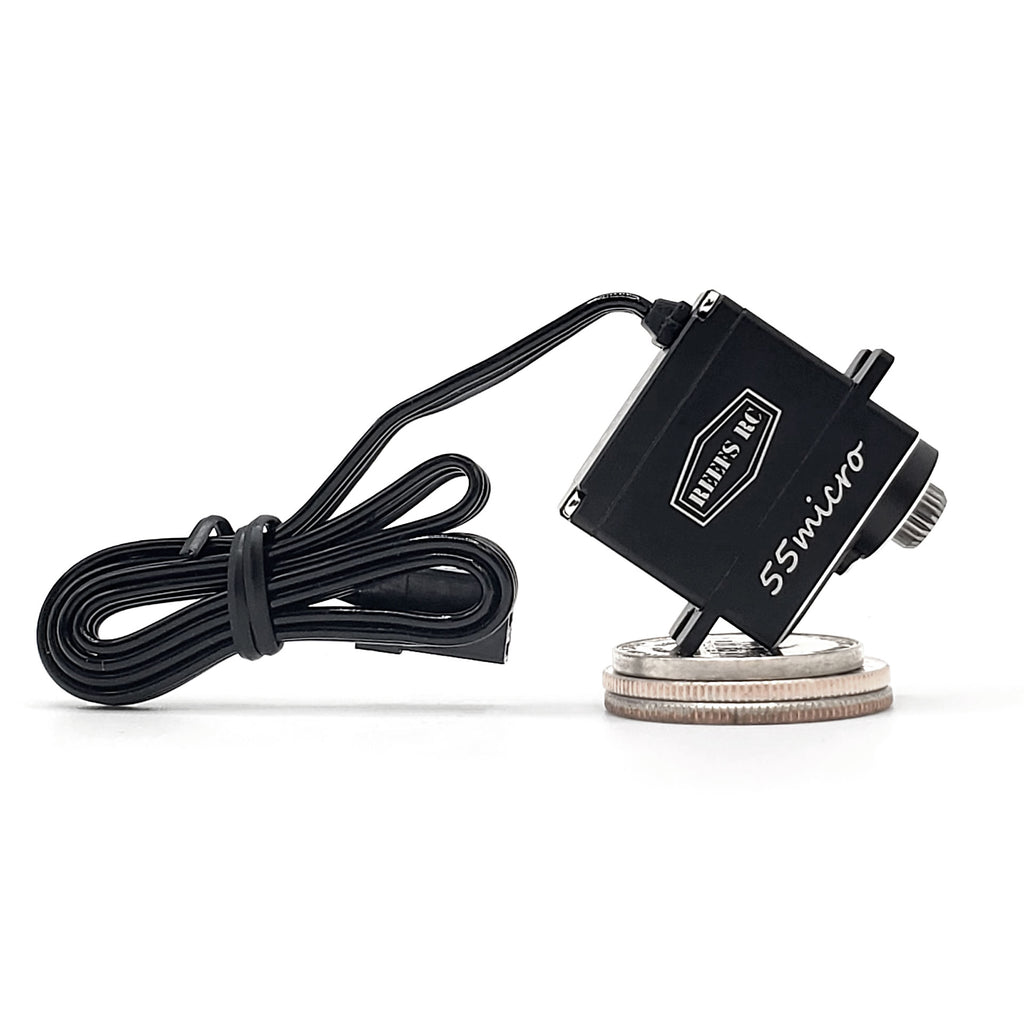

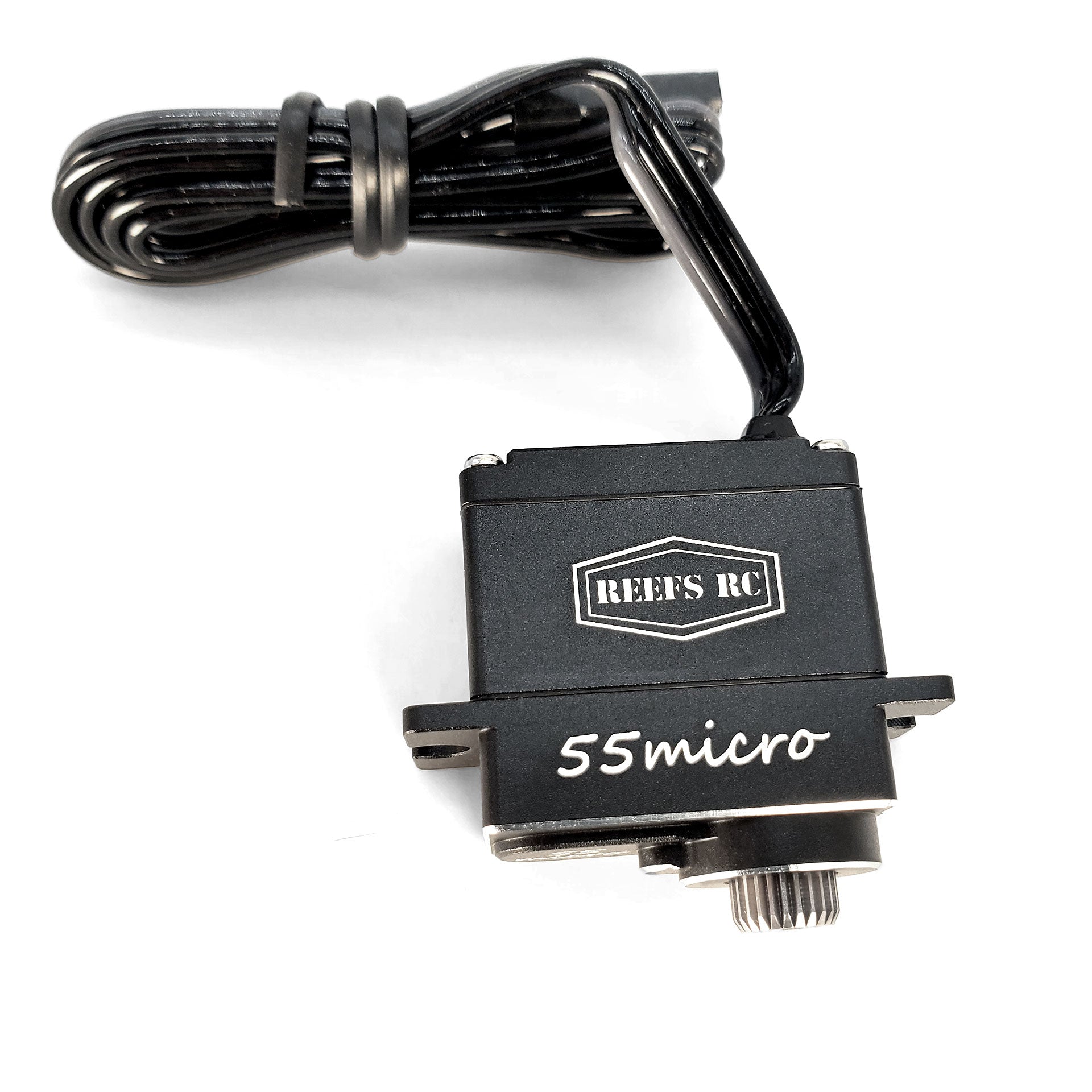

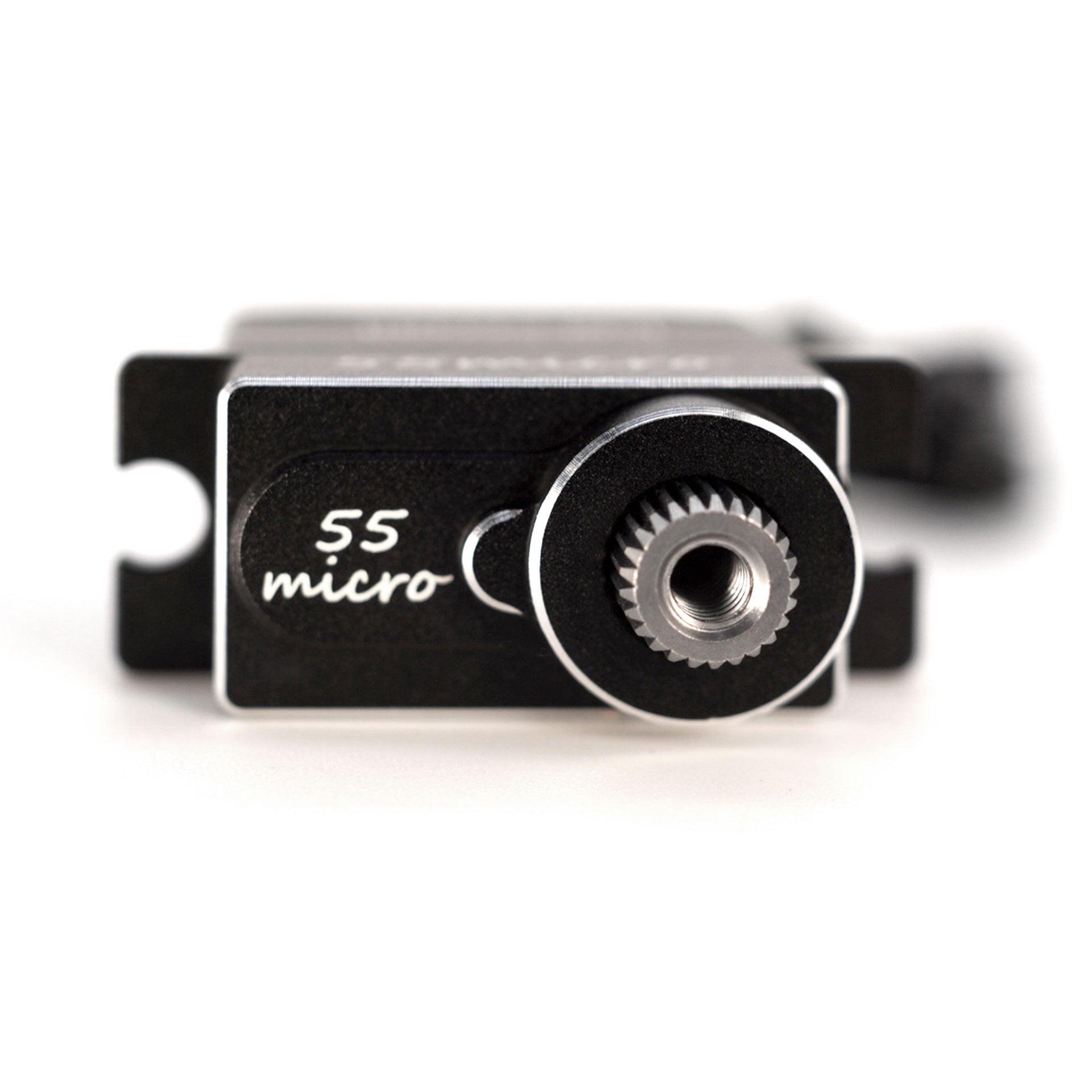

55Micro Servo, Programmable
Features:
- Fully Programmable Digital Servo
- Pulse Width Modulation Control
- CNC Aluminum Casing
- Metal Internal Gears
- BEC Not Required
Specifications:
- Travel: 180
- Angle: No limit
- Voltage: 4.8 - 8.4
- Temp Rate: -15C~ +70C
- Weight: .67oz / 19g
- Dimension (LxWxH): .90 x .50 x .86 in (22.9 x 12.8 x 22 mm)
-
Torque:
- @6.0V: 41oz
- @7.4V: 48oz
- @8.4V: 55oz
-
Speed:
- @6.0V: .11sec
- @7.4V: .09sec
- @8.4V: .08sec
- Spline: 25T Standard
- Dead Band Width: 3us
