Innovative 1/8 Scale 2-in-1 Brushless Crawler Combo
The QuicRun Fusion 8IGHT 2-in-1 Brushless Crawler ESC & Motor System from Hobbywing is a game-changer for large scale crawlers, offering an easy install and unmatched performance. Designed specifically for rock crawlers, this innovative system combines an ESC and motor into a single unit, simplifying wiring and installation. It features advanced technologies like FOC (Field Oriented Control) and IP67 waterproofing to deliver exceptional torque, precision, and reliability in any conditions. With its robust design and real-time adjustment capabilities, this system elevates your driving experience to new heights.
Simplified Installation
The QuicRun Fusion simplifies your RC setup with its integrated ESC and motor design. By eliminating the need for separate components, this system reduces clutter and streamlines wiring, allowing for a cleaner and more efficient vehicle layout. Whether you are a seasoned racer or a beginner, its user-friendly design ensures an effortless installation process.
Exceptional Performance
Engineered with FOC (Field Oriented Control) technology, this system delivers strong low-speed torque, providing enhanced control and a smoother driving experience. Its efficient power system generates less heat, ensuring extended runtimes and a quieter motor operation. Perfect for rock crawlers, this setup outperforms traditional brushed and brushless systems.
Advanced Adjustability
The QuicRun Fusion is equipped with intelligent drag brake force adjustment, enabling superior holding power on inclines and real-time tuning through your transmitter's AUX channel. Additionally, its built-in BEC offers adjustable voltages to support high-torque and high-voltage servos, making it adaptable to various driving styles and terrains.
Features:
- Integrated ESC and motor design for simpler wiring
- FOC driving mode for strong low-speed torque
- High efficiency reduces heat and extends runtime
- IP67 waterproof for reliability in all conditions
- Intelligent torque output for precise handling
- Real-time drag brake adjustment via AUX channel
- Built-in switch mode BEC with adjustable voltage
- Multiple protection functions for added safety
- Compatible with LED and LCD Program Box Pro/G2
- Quiet and smooth motor operation
Includes:

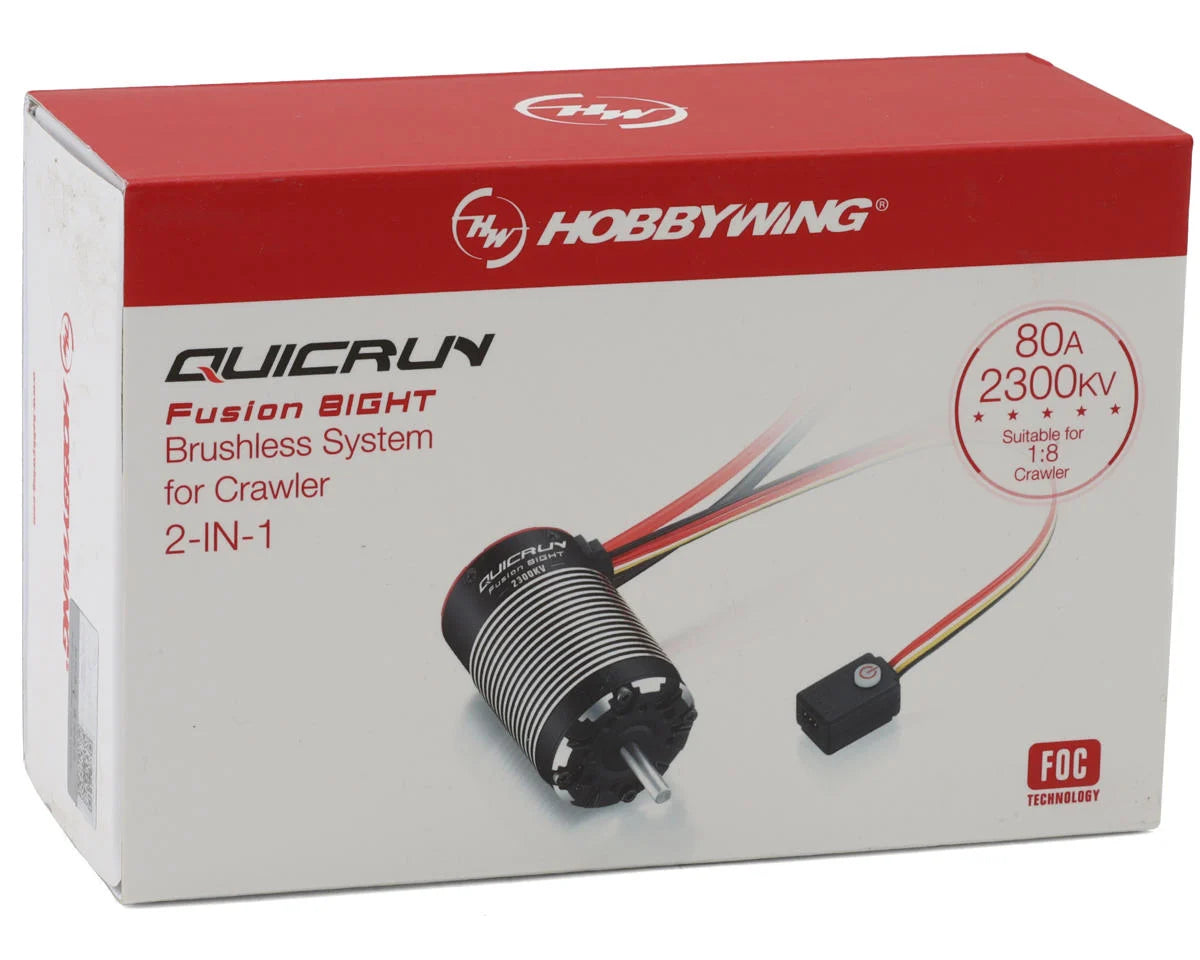

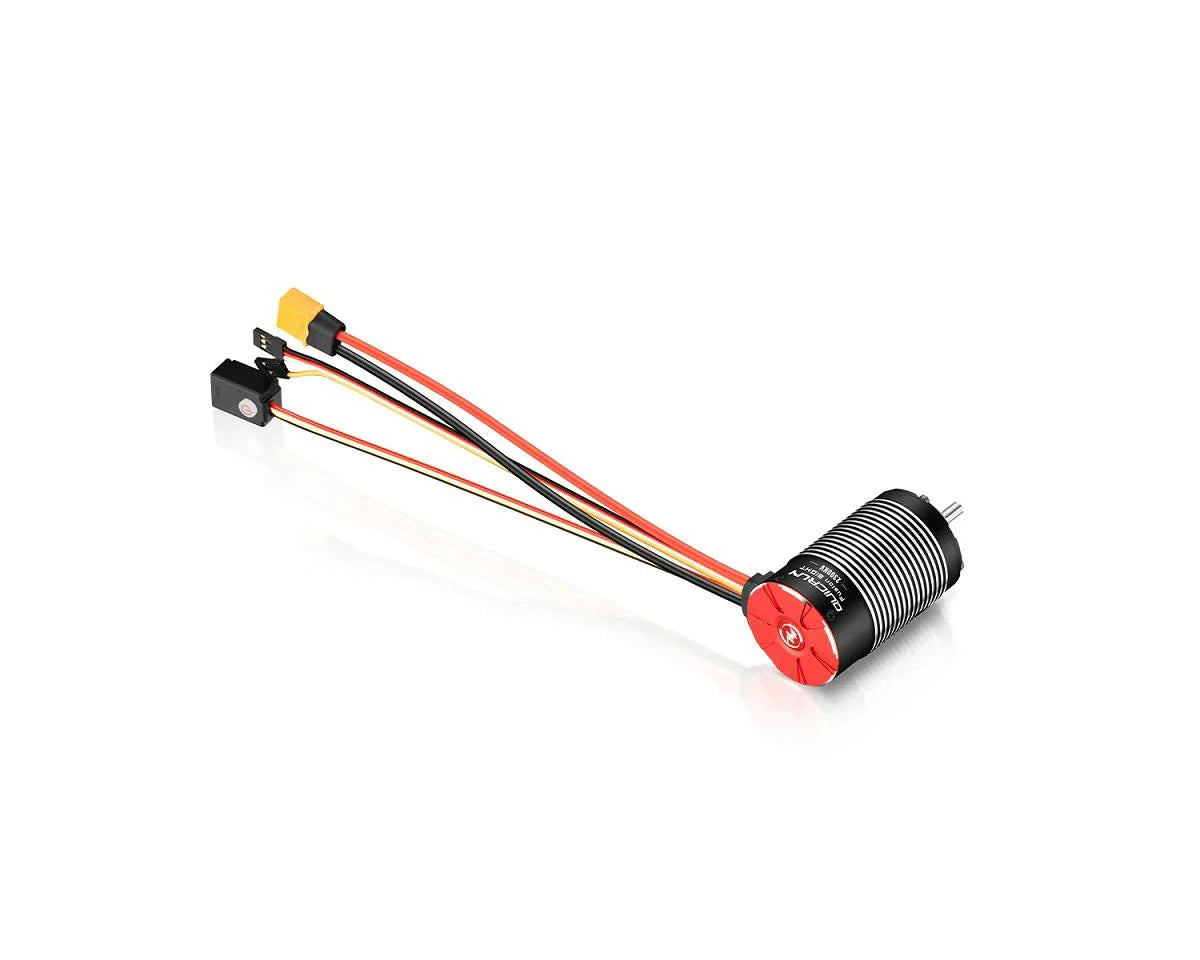

- (1) QuicRun Fusion 8IGHT 2-in-1 Brushless Crawler ESC & Motor System (2300Kv)
- (1) Extension Cable
- (1) Double Sided Tape
- (2) Zip Ties
- (1) Product Manual
Specifications:
ESC
| Suggested Application |
1/8 Crawler |
| Motor Type |
Brushless |
| Input Voltage |
2-4S LiPo (7.4-14.8V)* |
| Continuous Current |
80A |
| Burst Current |
240A |
| Dimensions (LxWxH) |
1.65x2.72in (42x69mm) |
| Weight |
11.9oz (338g) |
| BEC Voltage |
6.0/7.4/8.4V |
| BEC Continuous Current |
6 |
| BEC Peak Current |
- |
| Motor Connector |
- |
| Battery Connector |
XT60 |
| Motor Wire |
- |
| Battery Wire |
- |
| Throttle Wire |
- |
| Programming |
Program Port |
|
Motor
| Suggested Application |
1/8 Crawler |
| Size |
2300kV |
| Type |
Brushless |
| Voltage |
2-4S LiPo |
| Adjustable Timing |
- |
| Watts |
- |
| Connector |
- |
| Dimensions |
1.65x2.72in (42x69mm) |
| Shaft Length |
0.73in (18.5mm) |
| Shaft Diameter |
0.19in (5mm) |
| Weight |
11.9oz (338g) |
| Max. Recommended Vehicle Weight |
-/td> |
|
