- Fits:
- 1/10 BIG ROCK 4X4 V3 3S BLX BRUSHLESS MONSTER TRUCK
- 1/10 BIG ROCK CREW CAB 3S BLX 4WD BRUSHLESS MONSTER
- 1/10 BIG ROCK CREW CAB 3S BLX 4WD BRUSHLESS RTR, BLUE
- 1/10 GRANITE 3S BLX 4WD BRUSHLESS MONSTER TRUCK
- 1/10 GRANITE 3S BLX 4WD BRUSHLESS MONSTER TRUCK
- 1/10 GRANITE 4WD V3 3S BLX BRUSHLESS MONSTER TRUCK
- 1/10 SENTON 3S BLX 4WD BRUSHLESS SHORT COURSE
- 1/10 SENTON 3S BLX 4WD BRUSHLESS SHORT COURSE
- 1/10 SENTON 4WD V3 3S BLX BRUSHLESS SHORT COURSE
- 1/8 TYPHON 3S BLX 4WD BRUSHLESS BUGGY RTR, BLACK
- 1/8 TYPHON 3S BLX 4WD BRUSHLESS BUGGY
- 1/8 TYPHON 4WD V3 3S BLX BRUSHLESS BUGGY RTR, RED

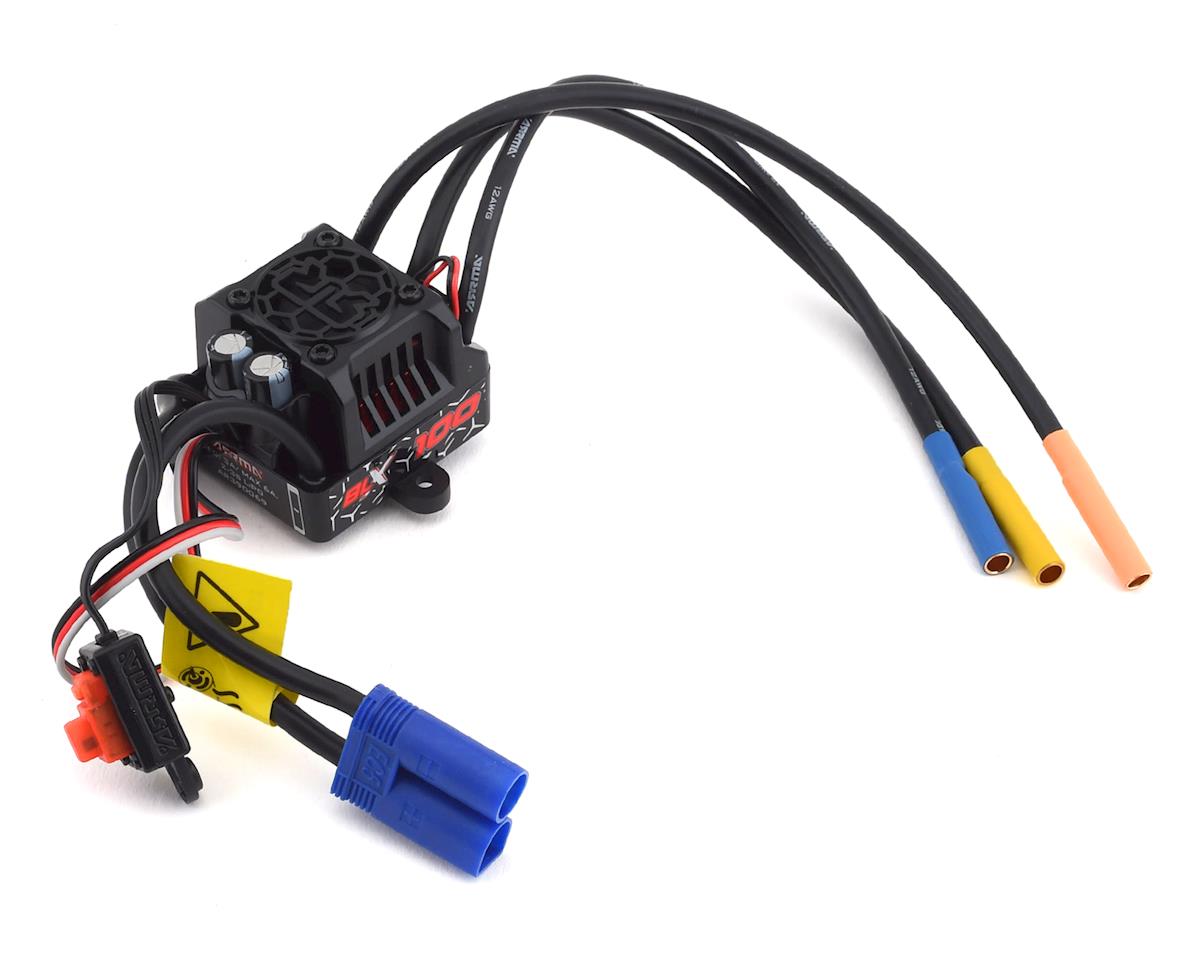

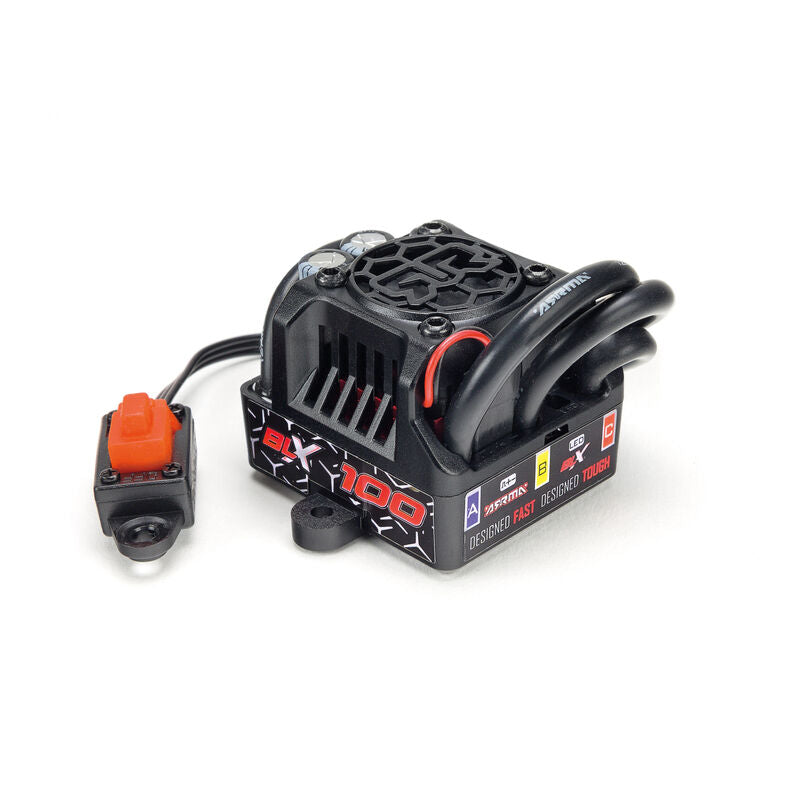

The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.
FEATURES
Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
SPECIFICATION
| Battery usage |
2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH |
| Low Voltage Cut-Off (LVC) |
3.4V per cell |
| Thermal Protection Temperature |
125°C / 257°F |
| Over-Voltage Protection |
Over 12.6V |
| BEC Voltage |
6V |
| BEC Current |
4A |
| ESC Length |
43mm / 1.69" |
| ESC Height |
34mm / 1.34" |
| ESC Width |
54.5mm / 2.15" (Including hold-down tabs) |
| ESC Weight |
120g / 4.2oz |
| Receiver Wire Length |
170mm / 6.70" |
| Battery Wire Length |
125mm / 4.92" |
| Motor Wire Length (Including Connector) |
200mm / 7.87" |
| Switch Length |
110mm / 4.33" |
| Switch Width |
12.8mm / 0.5" |
| Switch Height |
18mm / 0.71" |
| Motor Bullet Connector Size |
4mm / 0.16" |
| Wire Specifications |
12AWG |
| ESC Battery Connector Type |
EC5 |
INCLUDES
1 x BLX100 Brushless 3S ESC
