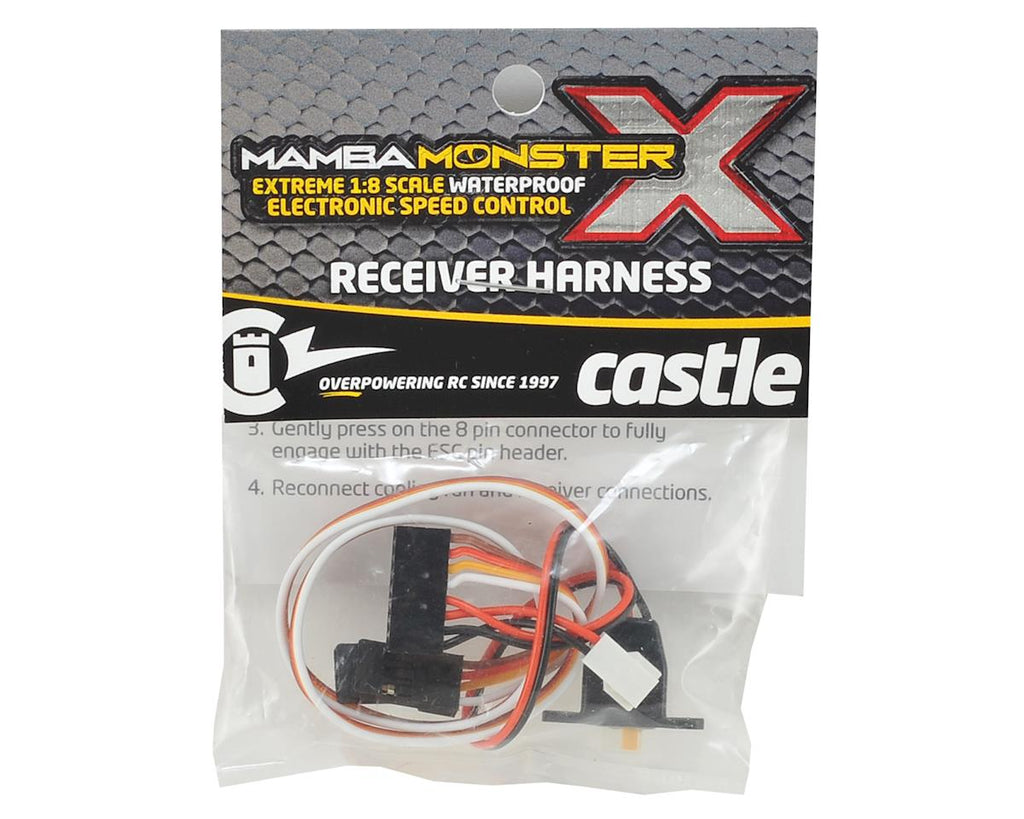

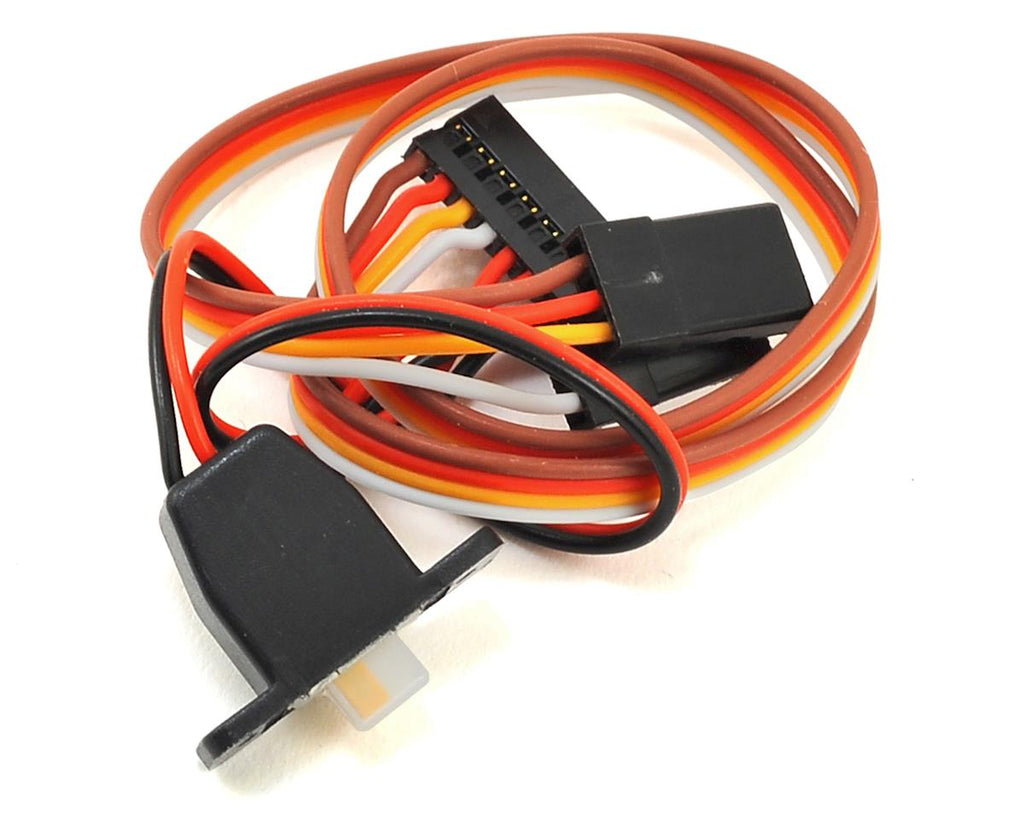

Castle Creations Monster X Receiver Harness

Replacement Receiver Harness for the Mamba Monster X, Mamba Monster X 8s, Mamba X, and Cobra 8 ESCs.

Features:

• Correct factory-specified connectors (RX and AUX)
• Waterproof switch
• Factory-specified wire gauge

Switch Power Switch On Off On/Off

Mamba Monster X Receiver Harness Connection Instructions

To Remove the Receiver Harness:

1. Place slight pressure with thumb on capacitor shroud (Figure 1).
2. Grip the harness close to the 8 pin connector and pull gently, at a slight angle away from ESC, to remove the harness from the ESC pin header (Figure 2).

   Note: Do not yank or forcefully pull harness out of ESC. May cause damage to ESC or harness.

To Replace the Receiver Harness:

1. Place slight pressure with thumb on capacitor shroud (Figure 1).
2. Following the color coded wiring diagram provided on the Monster X label, place the 8 pin connector onto the ESC pin header (Figure 3).

   Note: Misalignment of the harness will prevent the ESC from operating. Be sure that the brown wire is plugged in next to the negative (-) black power wire.
3. Gently press on the 8 pin connector to fully engage with the ESC pin header.
4. Reconnect cooling fan and receiver connections.
