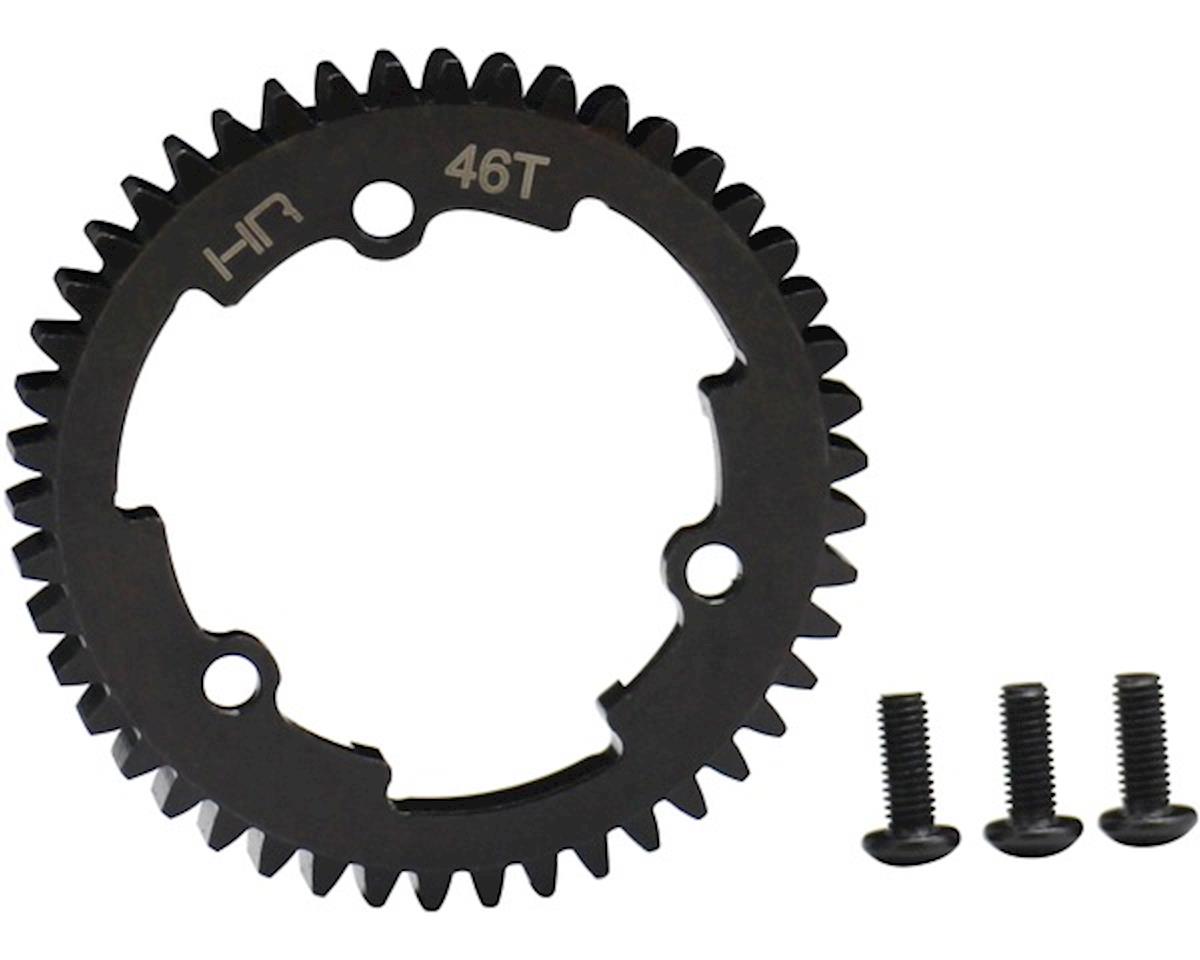

Hot Racing 46t Steel Mod 1 Steel Spur Gear For Traxxas E Revo 2.0 Xmaxx X0-1

Hot Racing 46t Steel Mod 1 Steel Spur Gear For Traxxas E Revo 2.0 Xmaxx X0-1

Write a review

Brand : Hot Racing

SKU : ERVT46M01

Availability : 5 In Stock

Effective Price : Regular price $29.88

Quantity

Consult Your User's Manual For Exact Parts Listings NOTE: Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh) With the pins removed, use the four 4x16mm...

Description
Reviews

Consult Your User's Manual For Exact Parts Listings

NOTE:

Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
