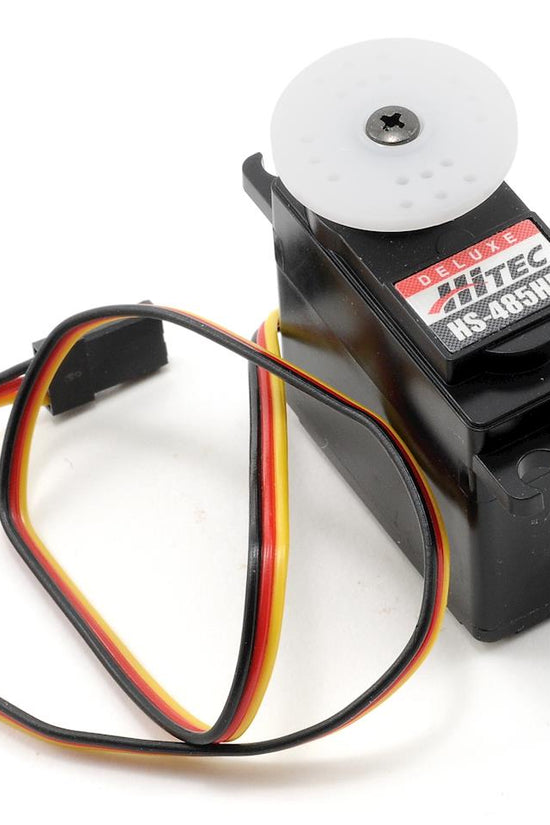

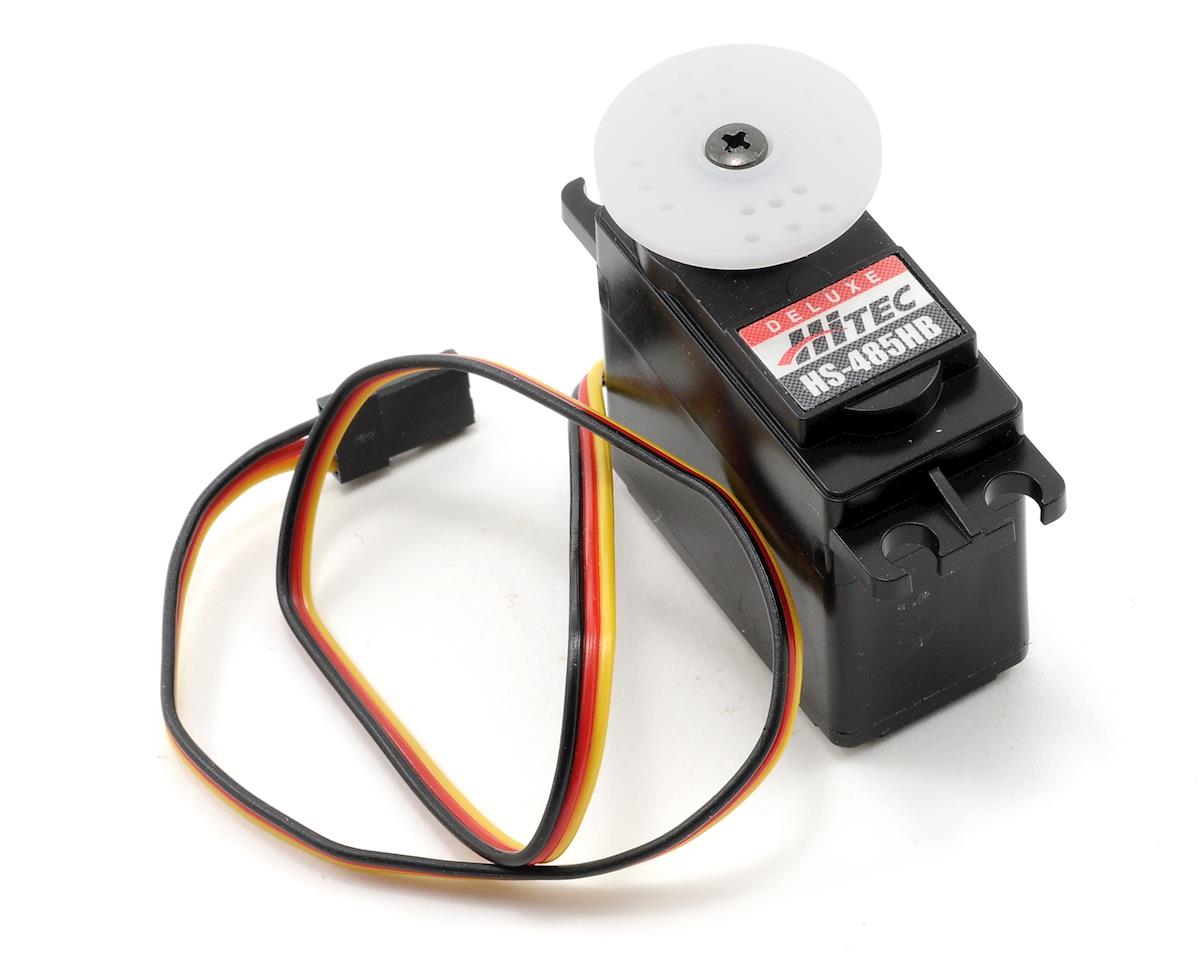

Hitec Deluxe HS-485HB Standard Analog Karbonite Gear Aircraft Servo
Regular price
$19.99
HS-485HB Standard Analog Karbonite Gear Aircraft Servo Product Specs Application Glow, Electric Aircraft Bearing Top Ball Bearing Bushing Or Bearing Bearing Connector Type Universal Current Draw Idle 10 mA Current Draw Stall 1,200 mA Deadband3µs Gear Type Karbonite Input Voltage4.8V ~ 6.0V Maximum Servo Speed 0.22 sec/60 deg @ 4.8V, 0.18...
HS-485HB Standard Analog Karbonite Gear Aircraft Servo Product Specs
- Application Glow, Electric Aircraft
- Bearing Top Ball Bearing
- Bushing Or Bearing Bearing
- Connector Type Universal
- Current Draw Idle 10 mA
- Current Draw Stall 1,200 mA
- Deadband3µs
- Gear Type Karbonite
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed 0.22 sec/60 deg @ 4.8V, 0.18 sec/60 deg @ 6.0V
- Maximum Servo Torque 67oz/in @ 4.8V, 83oz/in @ 6.0V
- Motor TypeBrushed
- Height 1.49" (38 mm)
- Length 1.57" (40 mm)
- Weight 1.59oz (45.0g)
- Width 0.78" (20 mm)
- Programmable No
- Servo Operating Voltage 4.8 - 6.0V
- Servo Size Category Standard
- Servo Type Analog
- Spline Count 24 - Tooth
- Water-Resistant No
- Wire Gauge 25 AWG
