Hobbywing Xerun XR8 Pro G3 Brushless ESC/4268SD G3 Motor Combo (2200kV

Product Description

Xerun XR8 Pro G3 Sensored Brushless Combo

The Xerun XR8 Pro G3 Brushless ESC and motor combo is Loaded with cutting-edge technologies and features, this 1/8 competition combo is designed to provide a higher level of performance and reliability for all competitive racers looking for the ultimate smooth control and supreme power you'd come to expect from Hobbywing! For added protection, this ESC (Electric Speed Control) is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform the competition.

NOTE: Use appropriate settings provided by the factory or team drivers. Check the operating temperature in order to maximize your electronics. The wrong settings may damage the ESC or motor.

Features:

XR8 Pro G3

Smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature
Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 59F
Dual brake mode
Advanced Turbo and Boost timing technology
Built-in reverse polarity protection circuit
Real-time data recording function, easy to obtain power running status
Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload
Superior dustproof protection

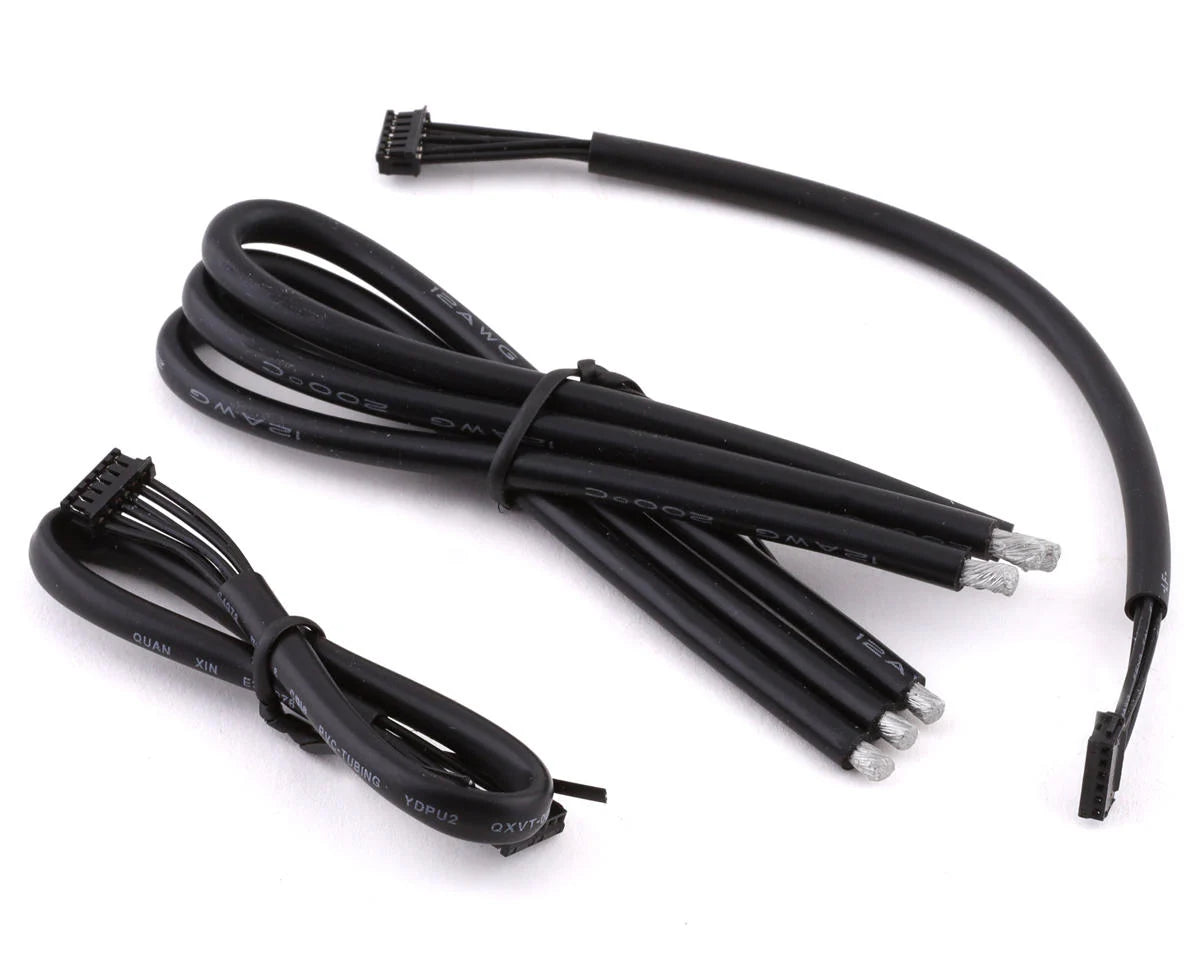

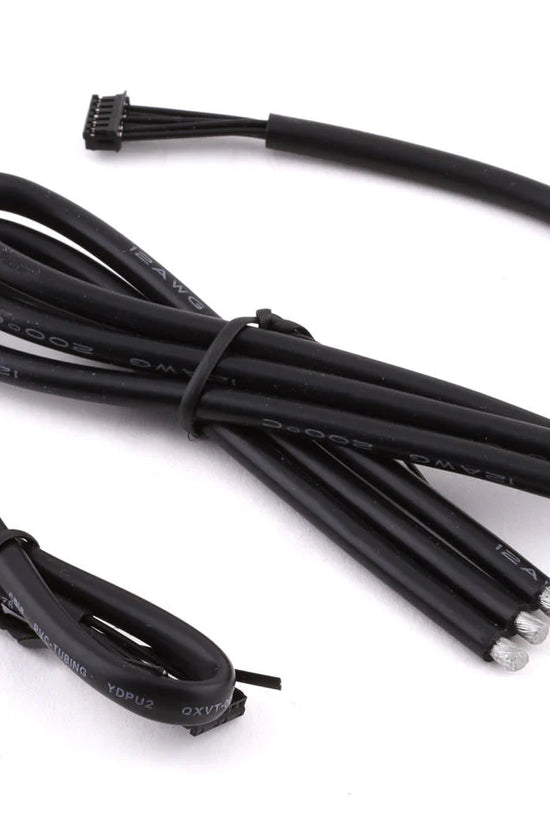

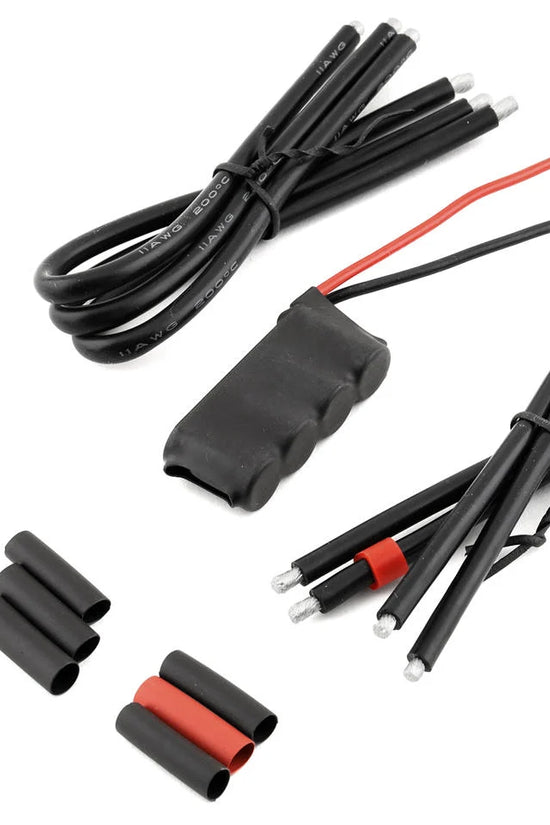

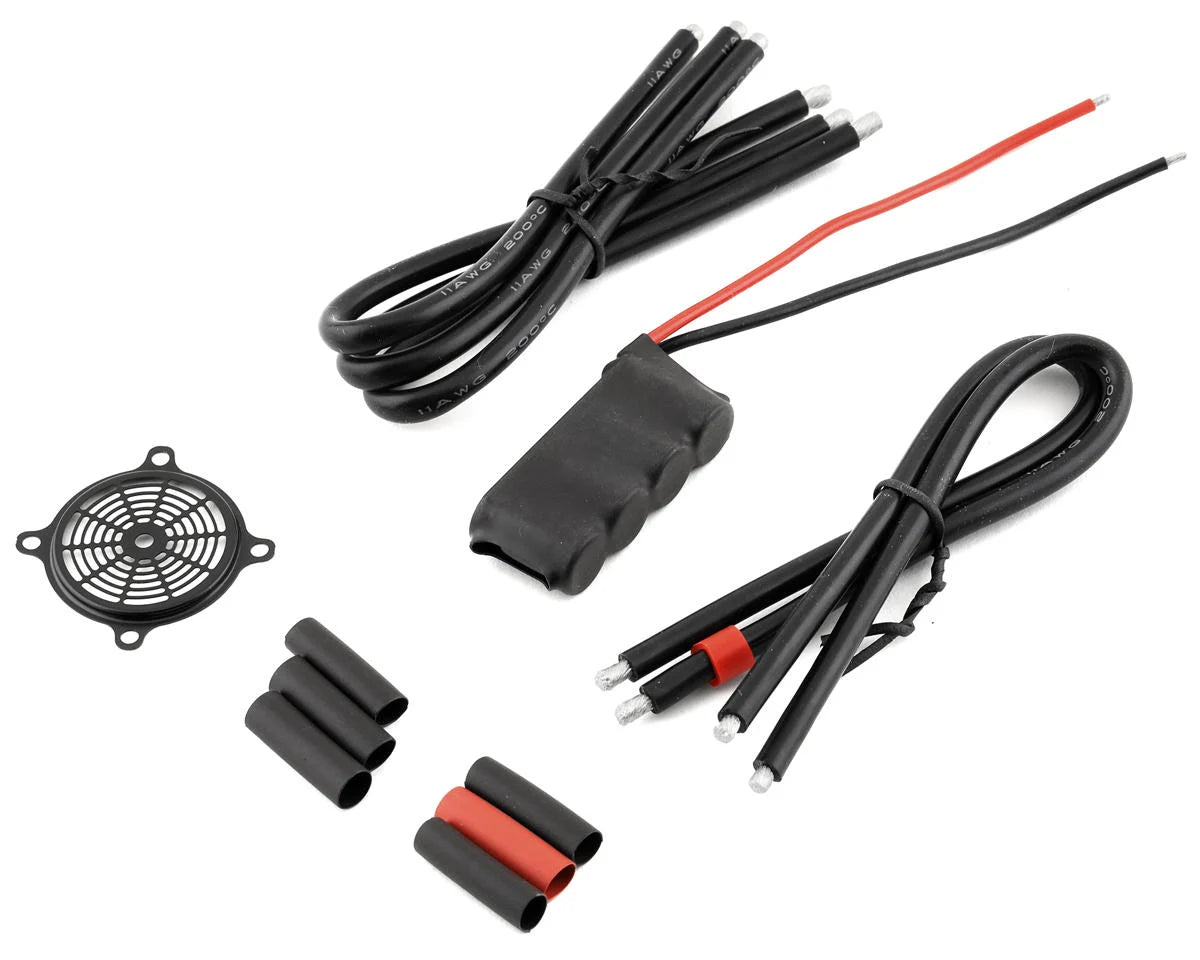

Custom ultra-soft 11AWG silicone wire
Frameless fan blade is designed with specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand, and other foreign objects
Intelligent fan with noise reduction and power saving functions

4268SD G3 Motor

2200Kv recommended for 1/8 off road
Turbo Timing Technology
Full Sensored mode (when paired with XR8 ESC)
Adjustable Timing (Bi-Directional)
Advanced Hall Sensor System
4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
Guarantees users effective heat dissipation and dust prevention
Double insulated windings (240°C R-rated)
Outstanding performance and super durability

Specifications:

ESC:
Scale: 1/8
Type: Brushless Sensored
Input Voltage: 2-4S LiPo
BEC Output: 6V/7.4V Adjustable

Continuous: 200A
Peak: 1080A

Motor Limit: 3S Lipo: KV= 4000 3660 Size motor / 4S Lipo: KV= 3000 4268 Size motor
Braking mode: FOC/BLDC
Programmable: Yes, Via OTA Programmer or LCD G2 Program Box
Suitable applications: 1/8 Off-road, On-road Racing & 1/10th Short course & Monster truck
Size(LxWxH): 54.8x38.8x36.8mm
Weight: 102.8g
Motor:
KV: 2200KV
Pole: 4
LiPo: 2S-6S
Resistance: 0.0069
Shaft Diameter: 5mm
No Load Current: 4.1A
Size (Diameter x Length): 42x68mm
Weight: 285g
Application: 1/8 Off Road

Includes:

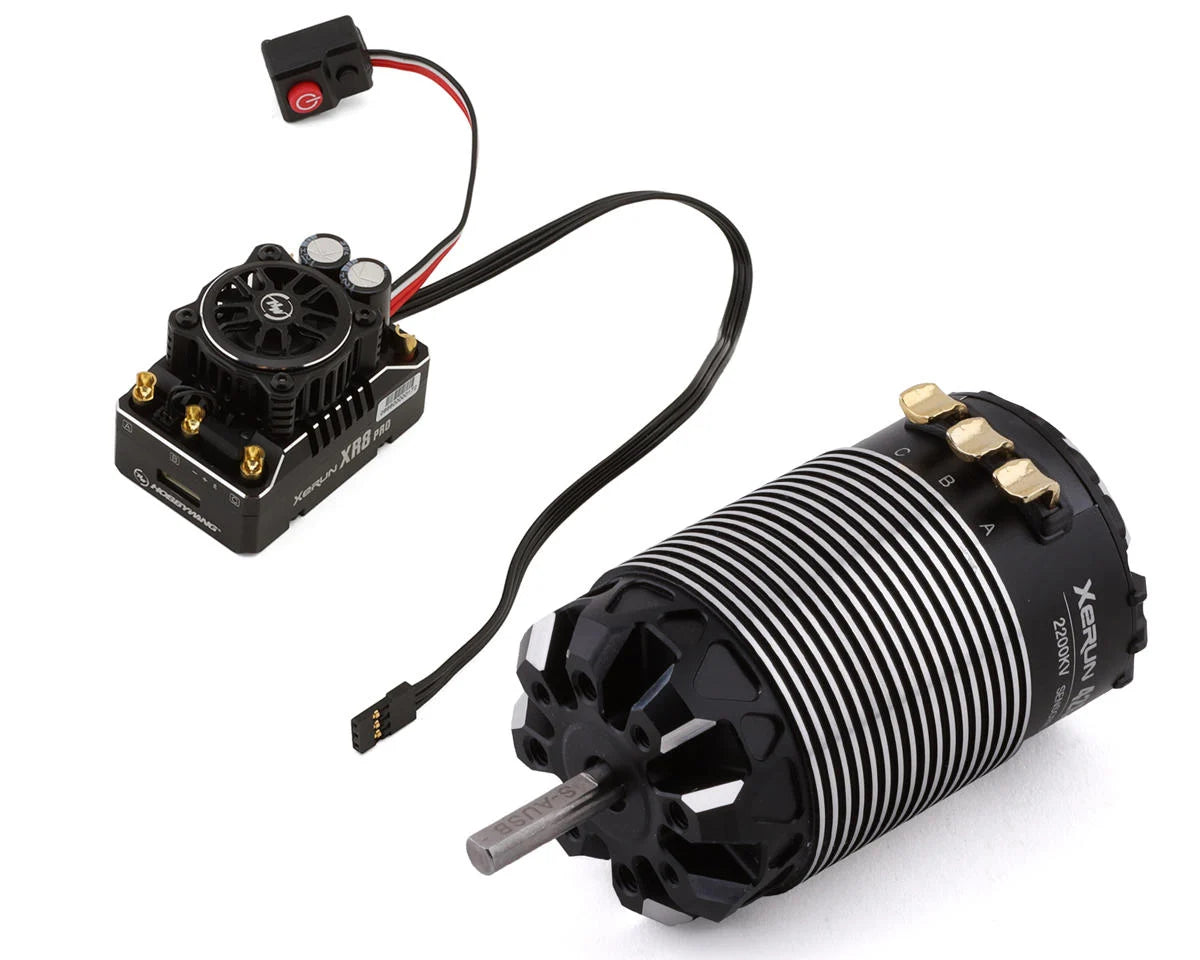

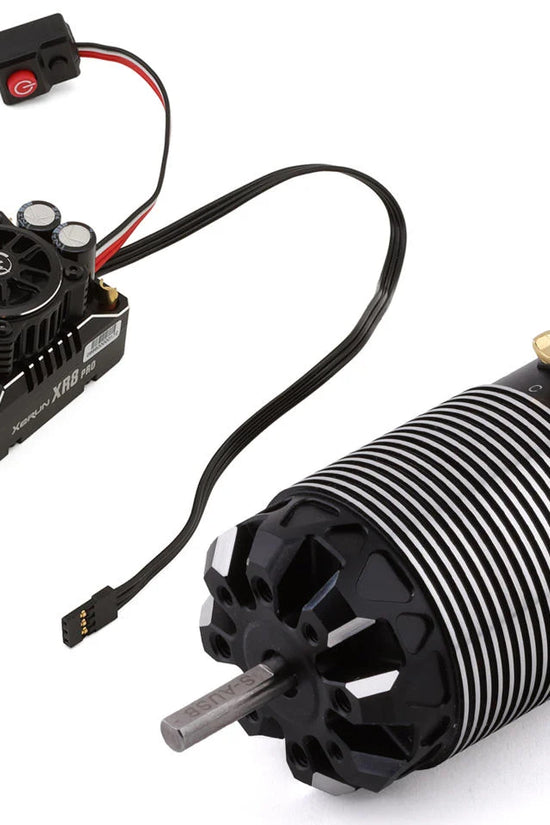

(1) Xerun XR8 Pro G3 Sensored Brushless ESC
(1) Xerun 4268SD G3 Sensored Brushless Motor
