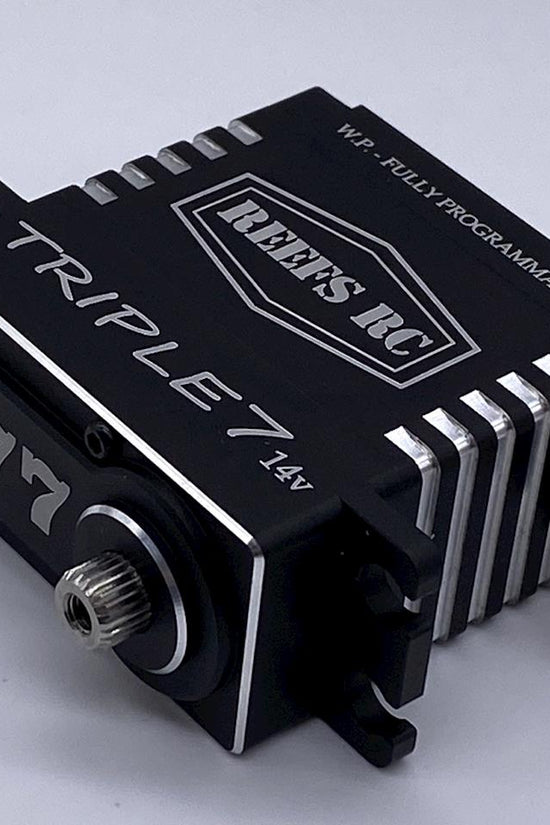

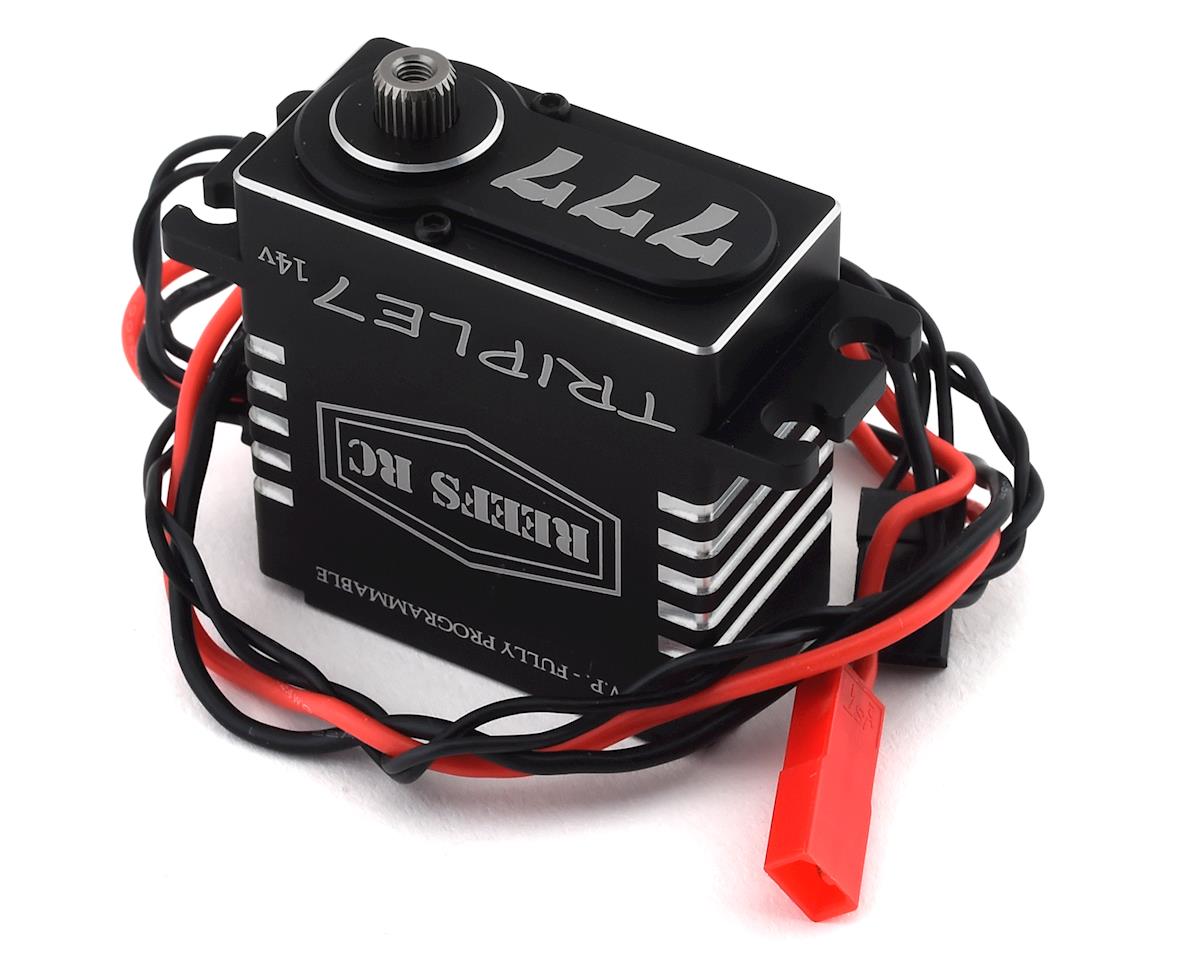

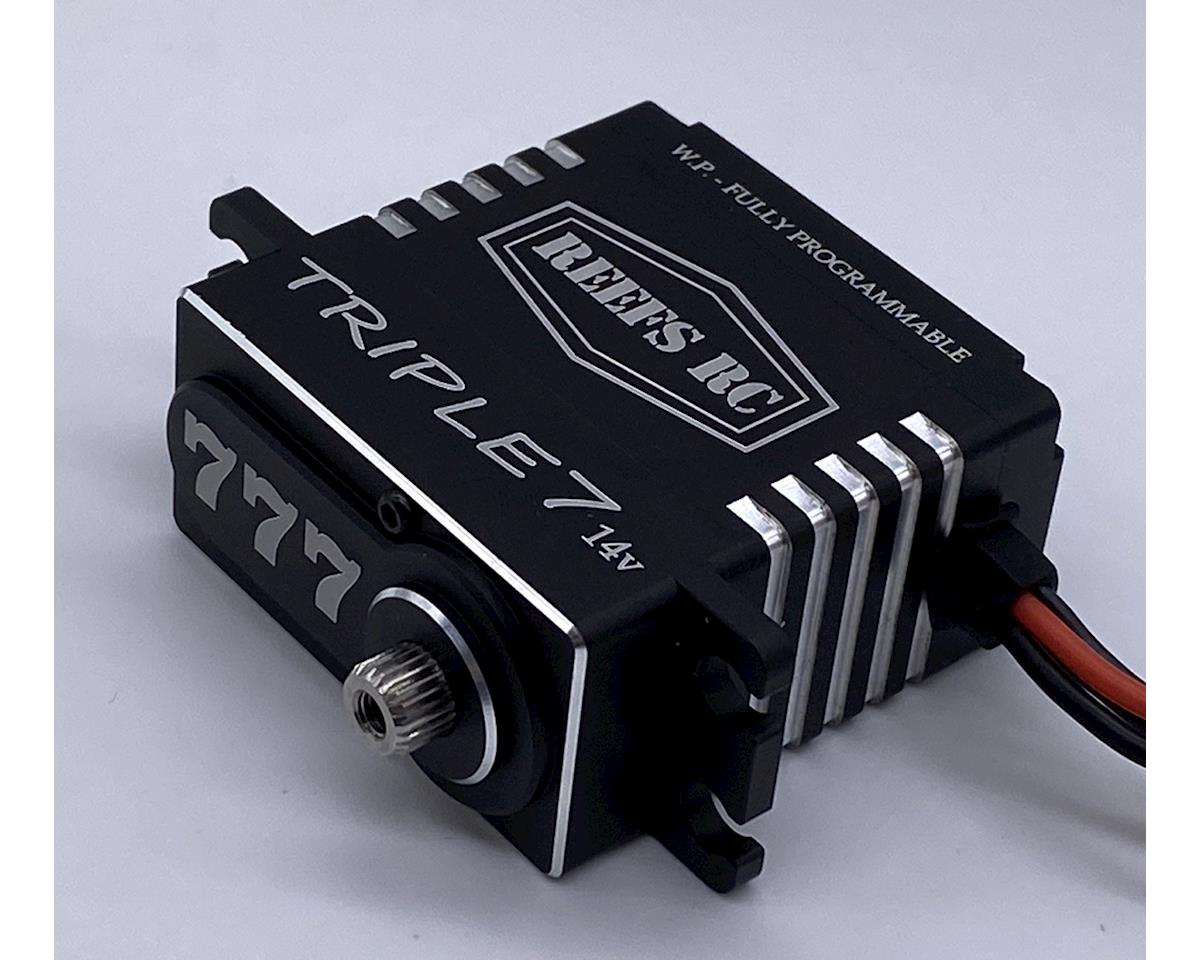

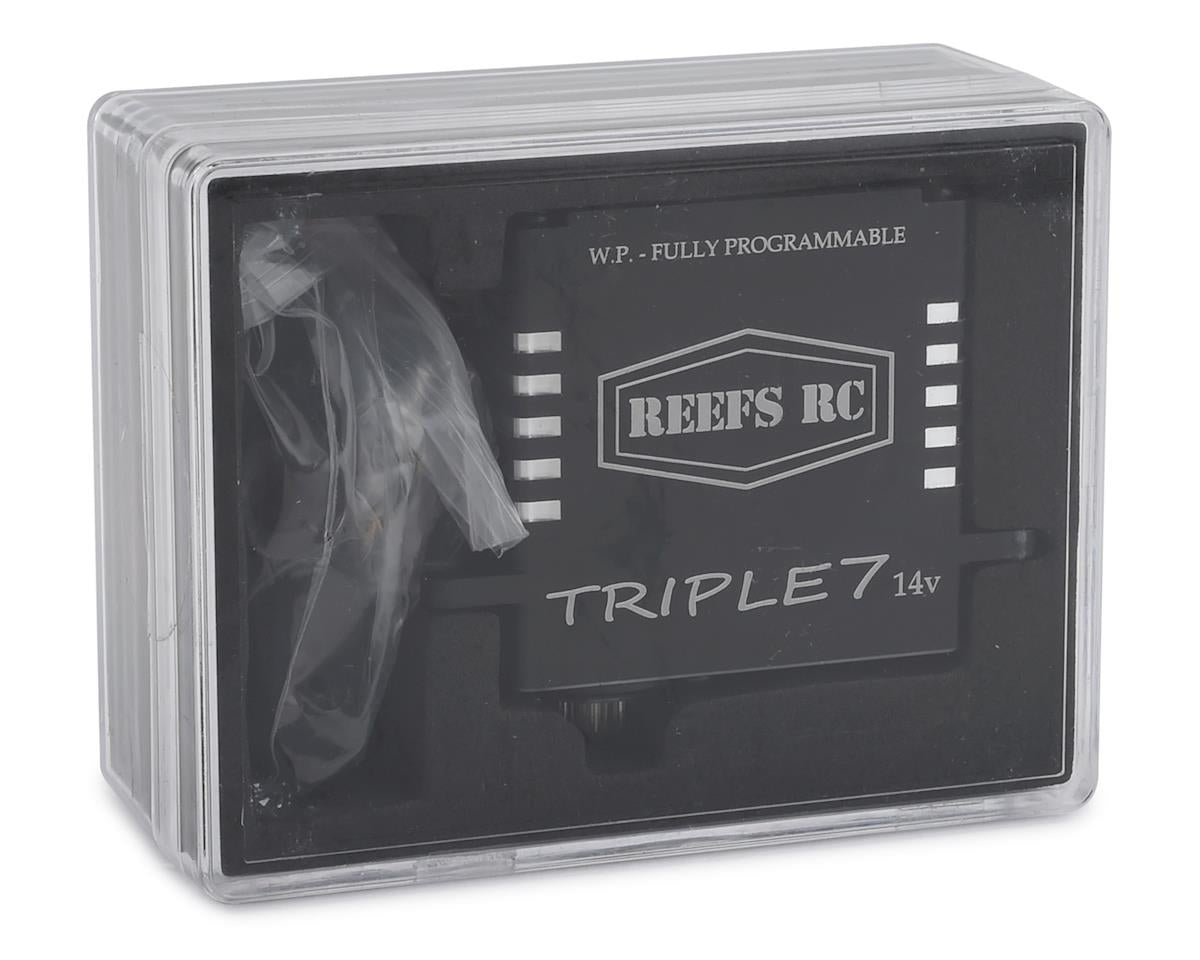

Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo

Product Description

WARNING:

DO NOT USE OVER 14v. YOU WILL VOID YOUR WARRANTY.

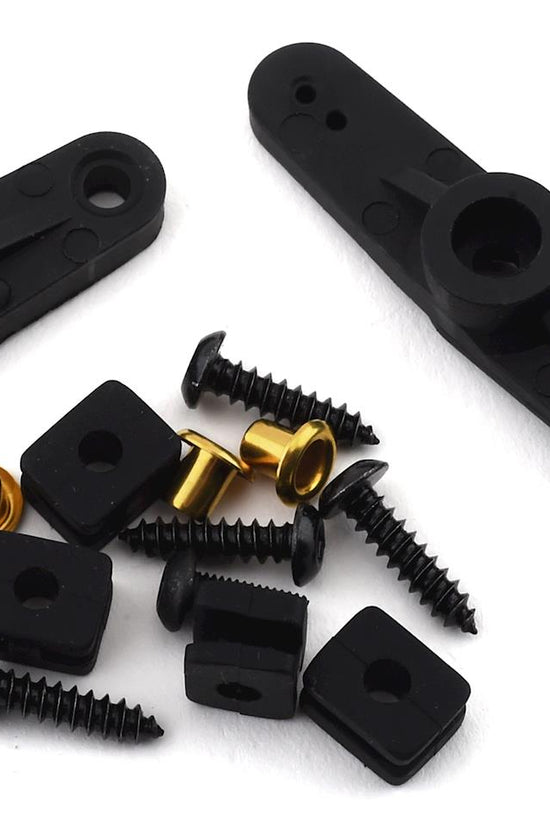

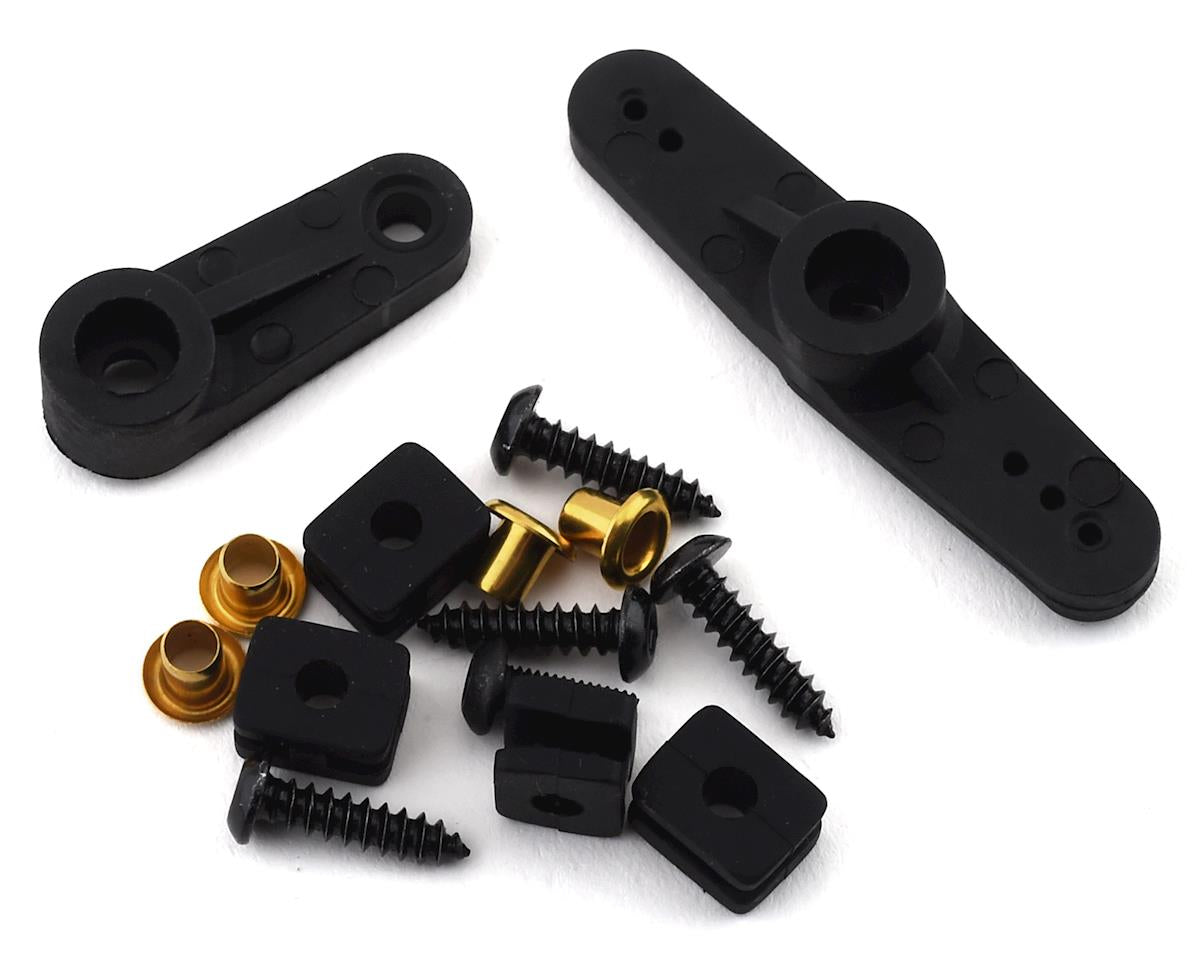

8mm screw required for horn.
Do not leave servo plugged into battery when not operating RC. Always turn the RC car off first, then remote.

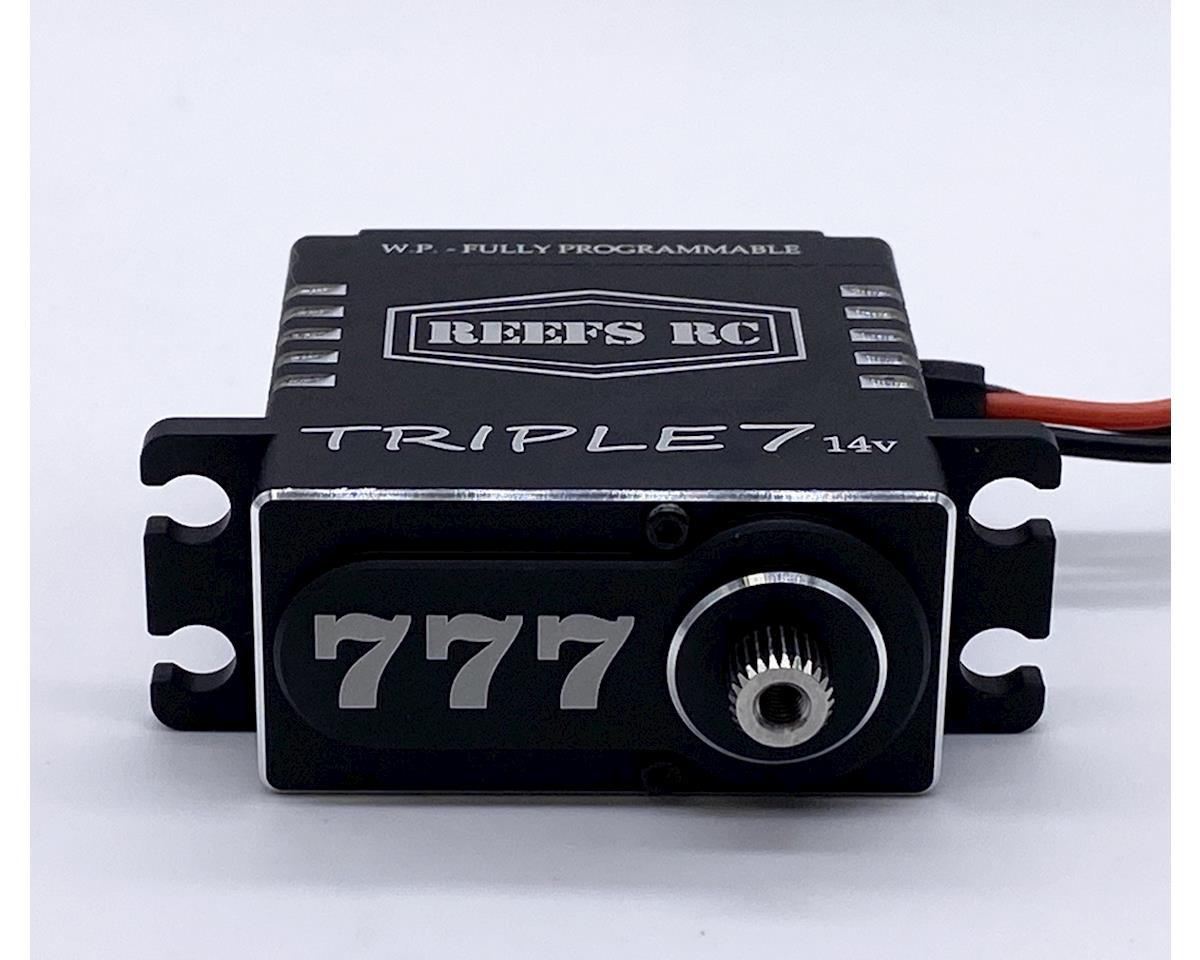

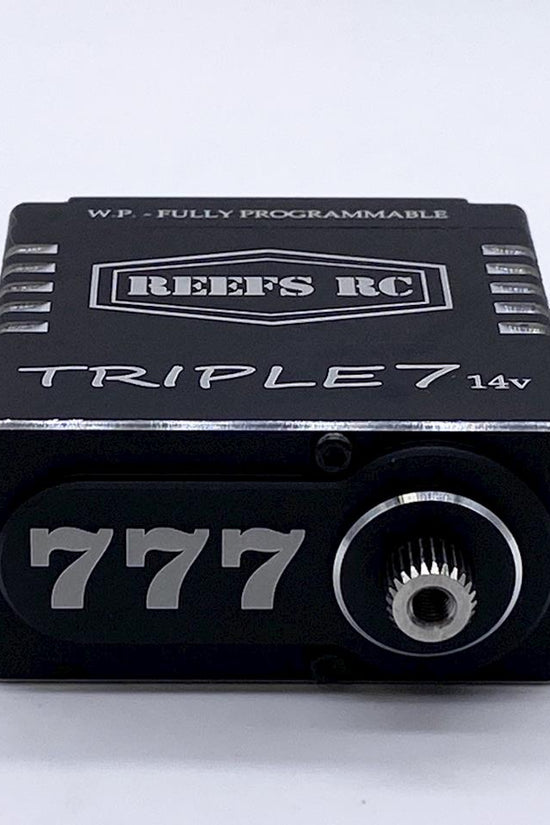

The Reefs RC Triple7 14V Programable High Torque Steel Gear Digital Servo is built from the ground up using a Patented CNC Case and features full programmability utilizing the Reefs USB link (SEHREEFS64 - not included) and REEFS Software. This will allow users the ability to increase output power, adjust the servo angle, sensitivity, inversion and so much more with the click of a button. Plus a variety of available LiPo connectors (SEHREEFS61/SEHREEFS62/SEHREEFS63 - not included), give you the ability to run your battery of choice, without relying on your ESC for power.

Features:

REEFS LINK Required for programming
Lipo-Servo Connector required
High Torque High Speed Brushless Servo
SUBMARINE WATERPROOF - 7 Point Seals
Magnetic Angle Sensor
Pulse Width Modulation Control
Fully Programmable with REEFS Software (available at Reefs website)

Specifications:

Input Voltage: 10V - 14V

Internal: Steel Gears / All CNC Aluminum Casing

Bearing Type: 3 Ball Bearings
Weight: 3.12oz

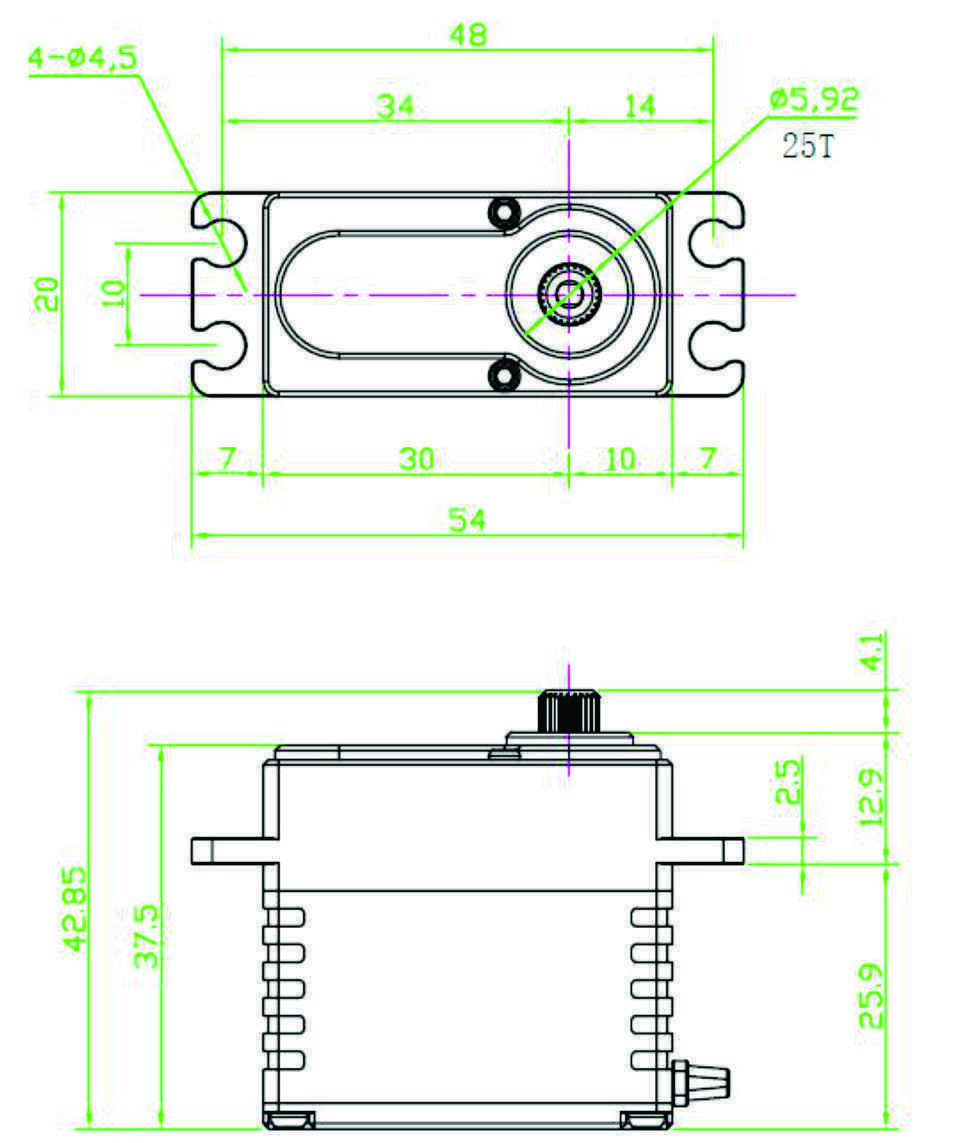

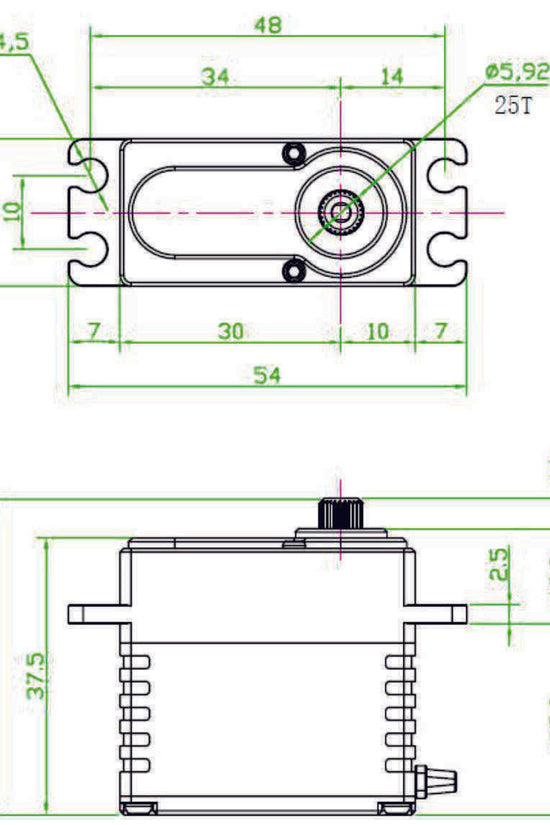

Dimension: 1.57 x .78 x 1.63 (LWH)

Torque: 666oz @11.1v/ 700oz @12.0v/ 777oz @14v

Speed: .10sec @11.1v/.09sec @12.0v/.08sec @14v

Spline: 25T
Dead Band Width: 2¦Ìs
