Premium Edition On-Road GT Racing Kit
The Tamiya Toyota Celica GT-Four RC ST205 1/10 4WD Electric Touring Car Kit is a high-performance assembly kit that faithfully reproduces the Toyota Celica GT-Four RC. Built on the TT-02 chassis, it's beginner-friendly with enhanced cornering and speed. The kit includes a torque-tuned motor and Hobbywing 1060 ESC for a performance-focused on-road racing experience, featuring exceptional endurance, user-friendly setup, and waterproof reliability. This kit combines style, functionality, and optimal electronics, creating a formidable racing machine for the track.
About the Toyota Celica GT-Four RC
Pre-Painted Body

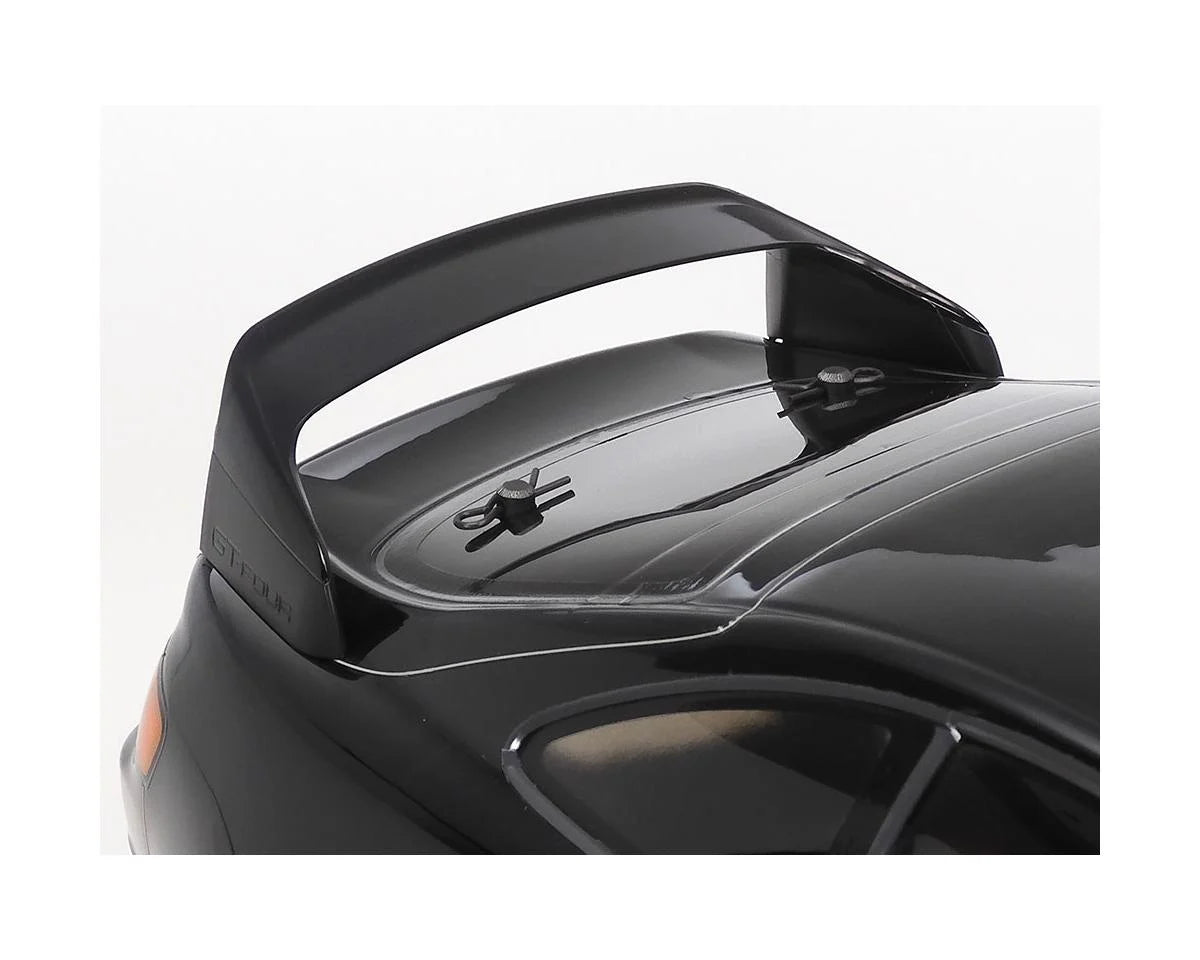

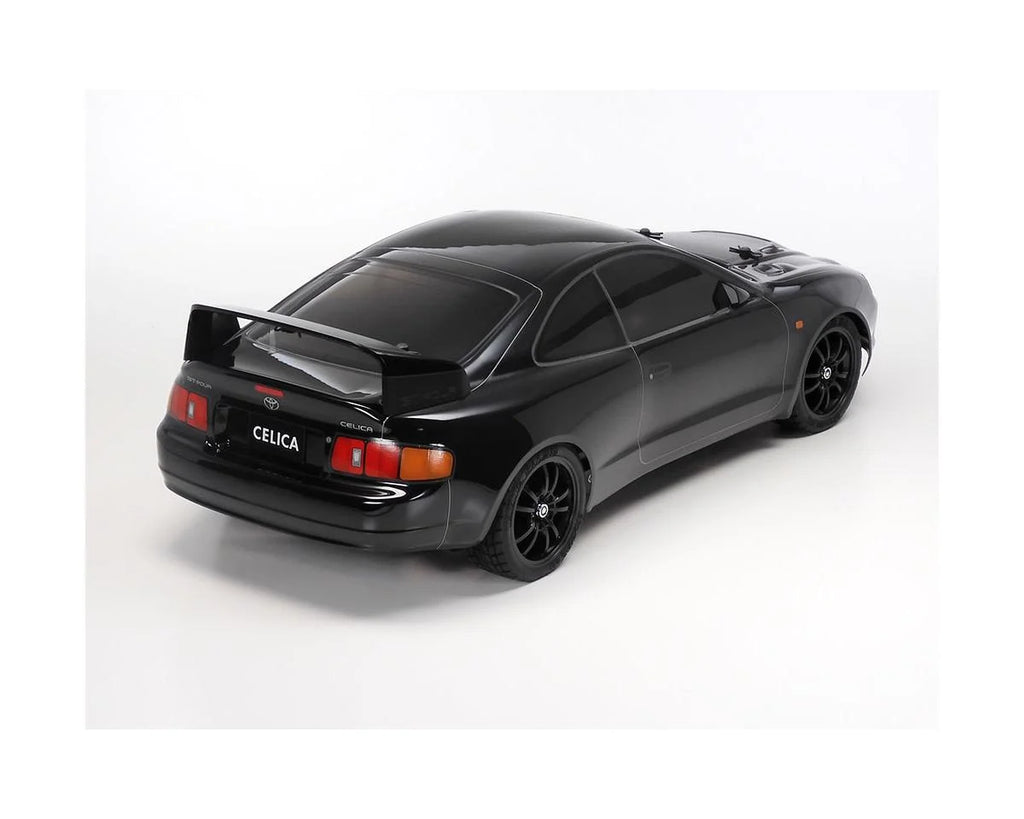

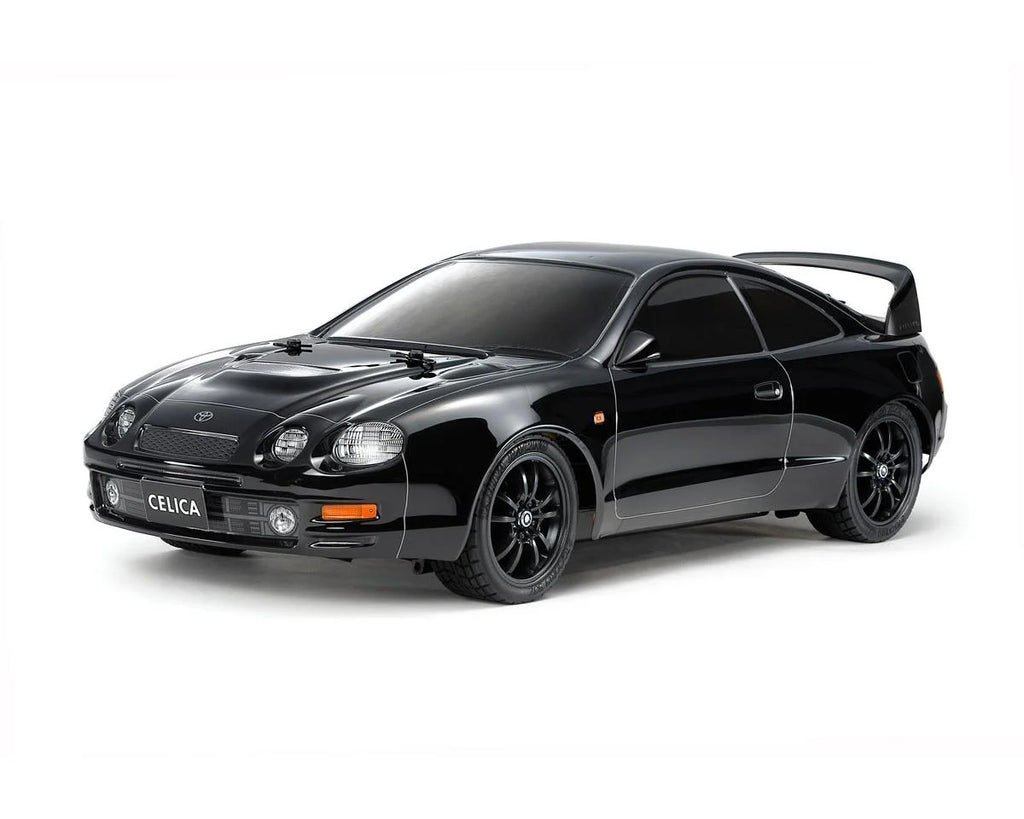

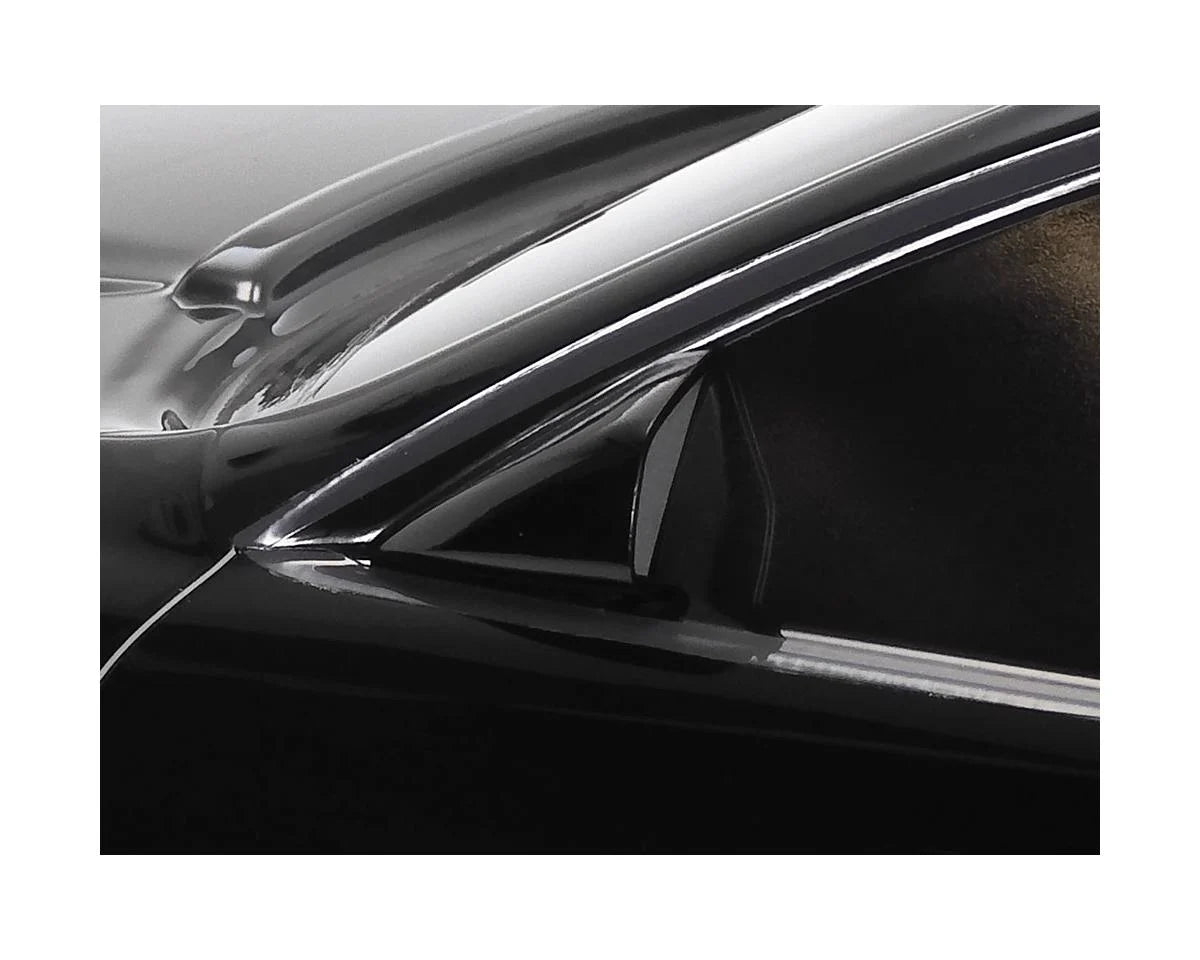

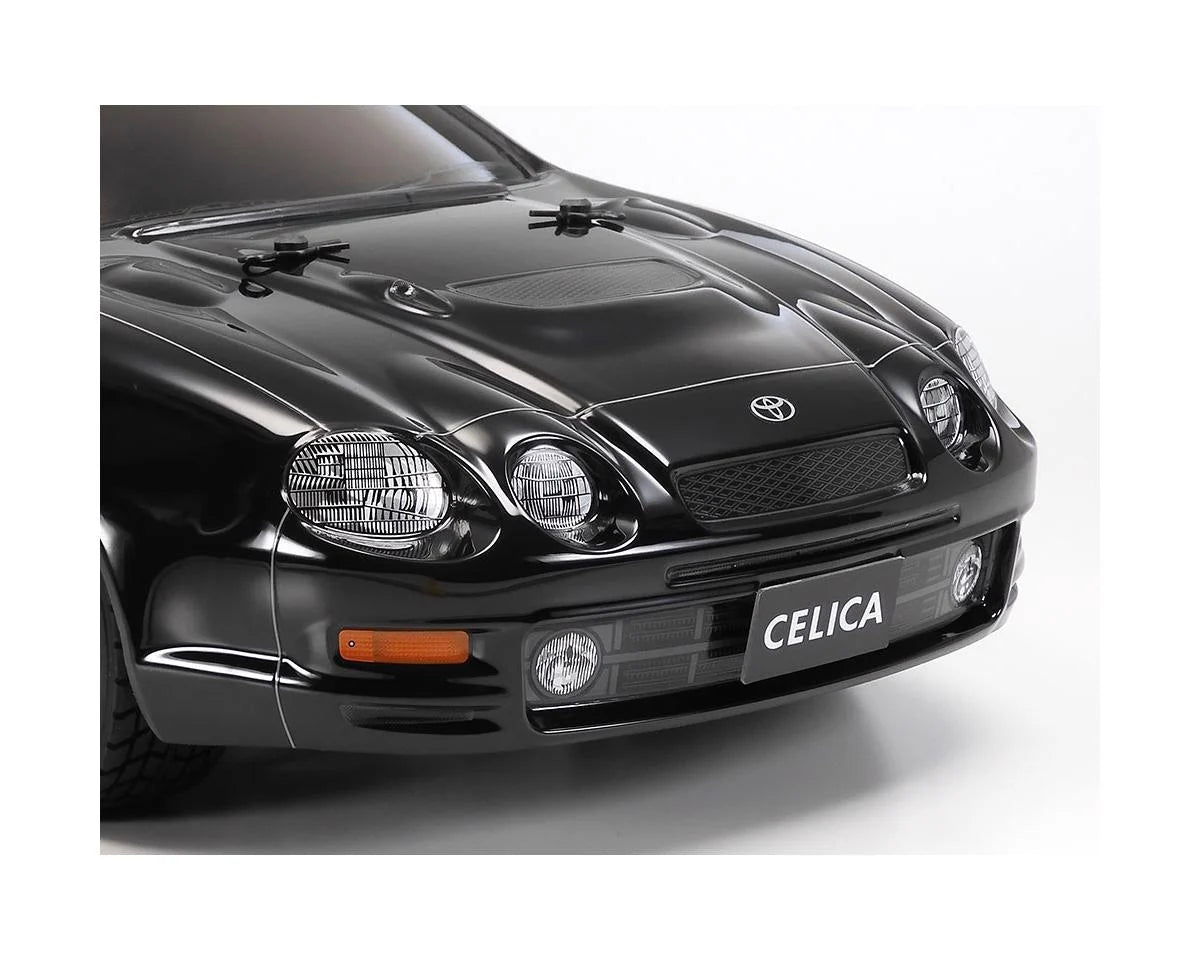

For a limited time only, the Toyota Celica GT-Four RC ST205 comes with a pre-painted body with smoke (PS-31) windows, making it an ideal choice for both beginners and experienced RC enthusiasts. Pre-cut wheel arches and pre-drilled mounting holes add convenience, allowing for quick and easy installation. This 1/10 scale polycarbonate body features an aerodynamically refined design with aggressive lines and smooth contours, crafted specifically for high-performance GT racing. Its streamlined shape not only boosts visual appeal but also enhances on-track performance by reducing drag and increasing stability. The Celica GT-Four RC body is a bold expression of Japanese engineering, seamlessly blending style with functionality.
Performance Chassis

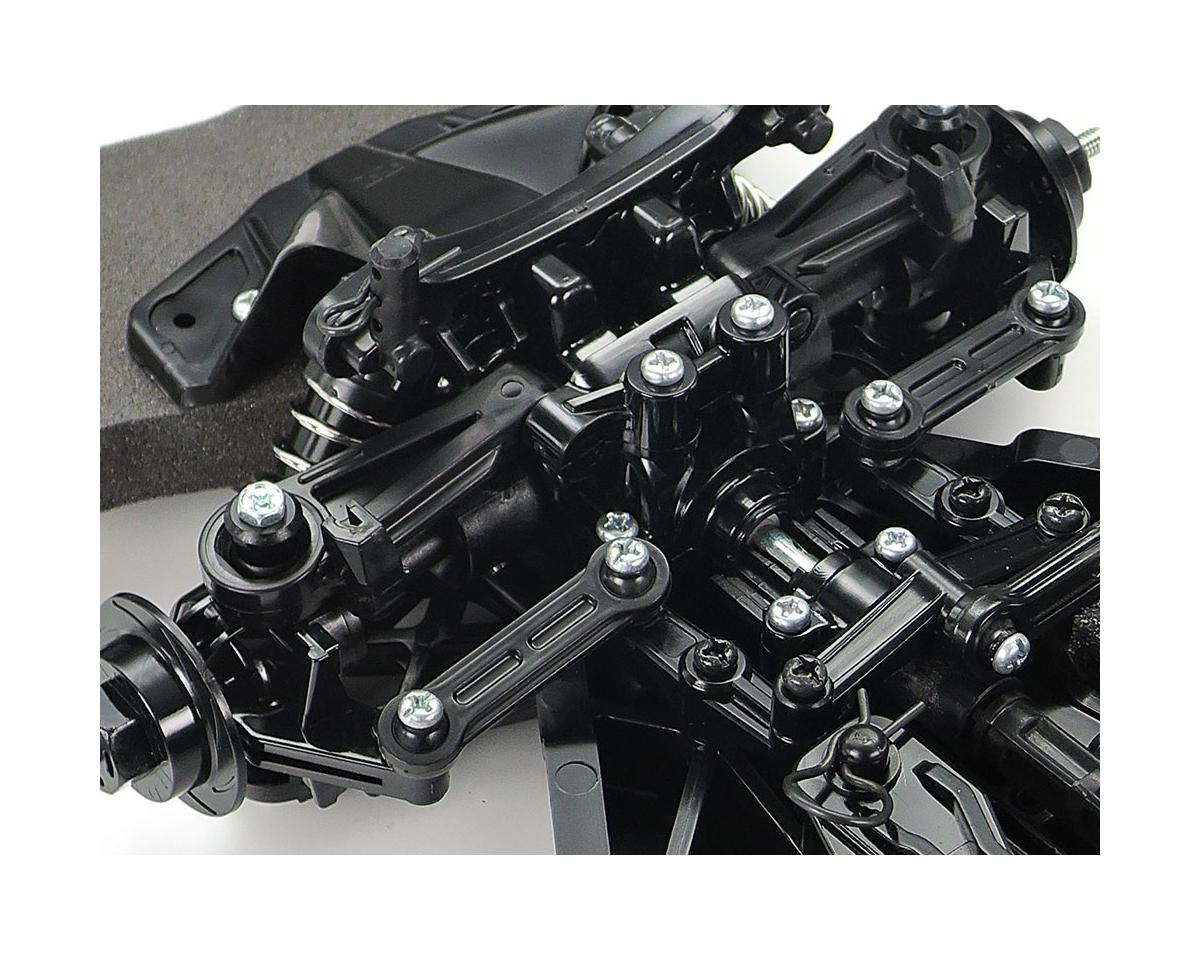

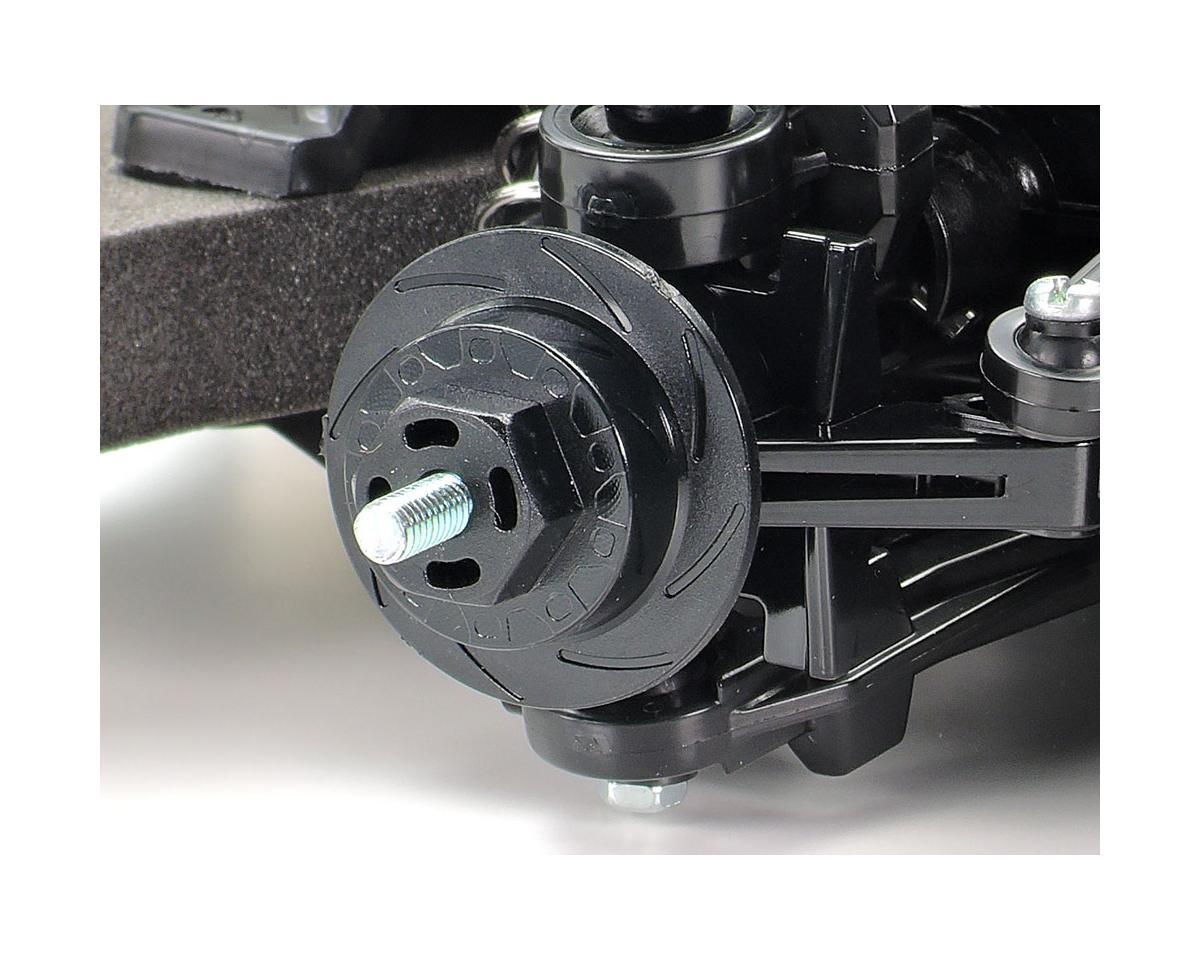

The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance.
Included Electronics
This chassis Kit includes both a torque-tuned brushed motor and Hobbywing 1060 ESC. These components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
Super smooth shaft-driven 4WD TT-02 chassis
Decals and window masking for use in the body painting process

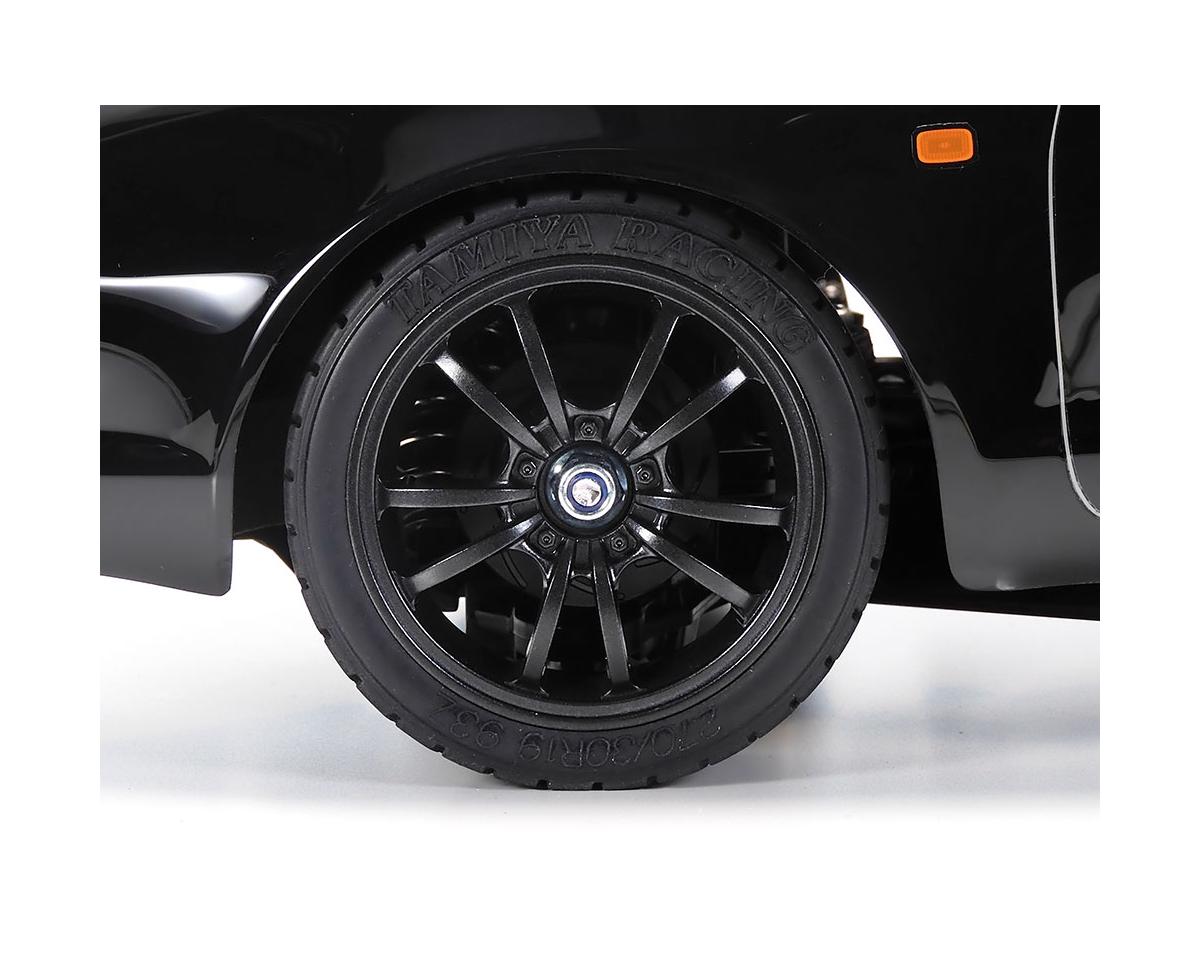

Sleek racing wheels to match the body
The body is made of lightweight and rigid polycarbonate
Fully independent double wishbone suspension

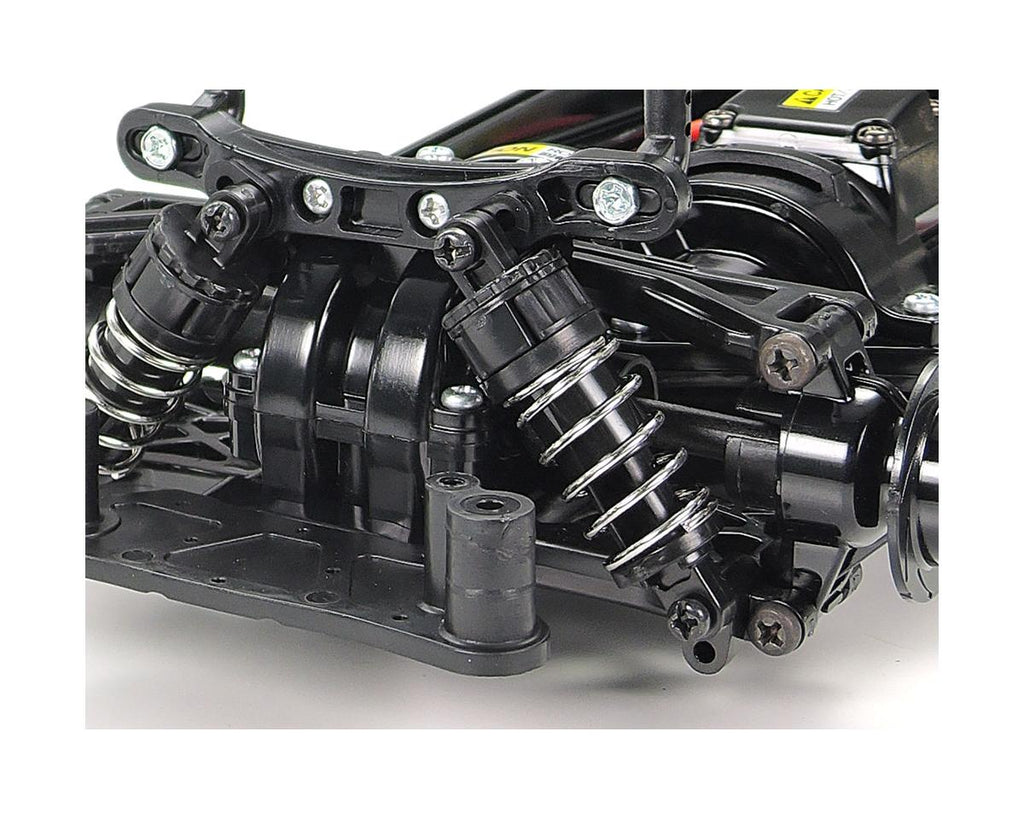

Low maintenance Friction style shocks
Reliable Hobbywing THW 1060 Brushed ESC

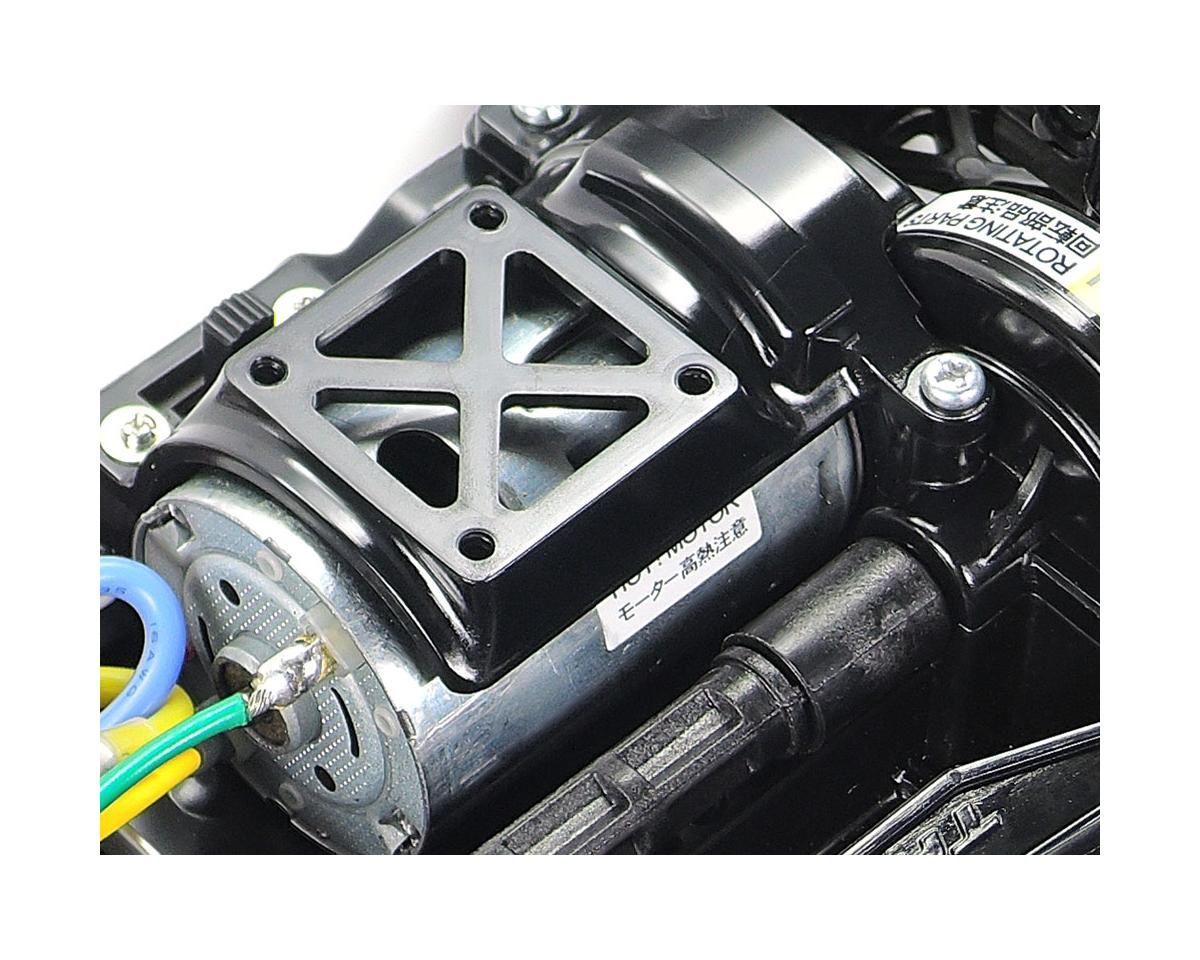

Strong Torque tuned Mabuchi RS-540 brushed motor
High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
Buttery smooth grease filled differentials
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
VIDEO
Includes:
(1) Toyota Celica GT-Four RC (ST205) Kit
(1) Pre-Painted Toyota Celica 1/10 Touring Car Body
(1) Hobbywing 1060 ESC with Tamiya Connector
(1) Torque-Tuned 540 Brushed Motor
Manual
Needed To Complete:
(1) 2-Channel Radio System
(1) Standard or Low-profile Steering Servo
(1) 7.2V NiMH battery with Tamiya Connector
(1) Compatible Battery Charger
Specifications:
Scale
1:10
Drive
4WD
Power Source
4-6 Cell (4.8-7.2V)
Length
17.72in (450mm)
Wheelbase
10.12in (257mm)
Width
7.36 (187mm)
Height
5.35in (136mm)
Weight
-
Assembly Level
Kit*
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
