Hot Racing Traxxas E Revo 2.0 X Maxx XO-1 50t Mod 1 Steel Spur Gear ERVT50M01
Regular price
$28.88
The Hot Racing 50 tooth hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S and XO-1 models. NOTE: Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without...

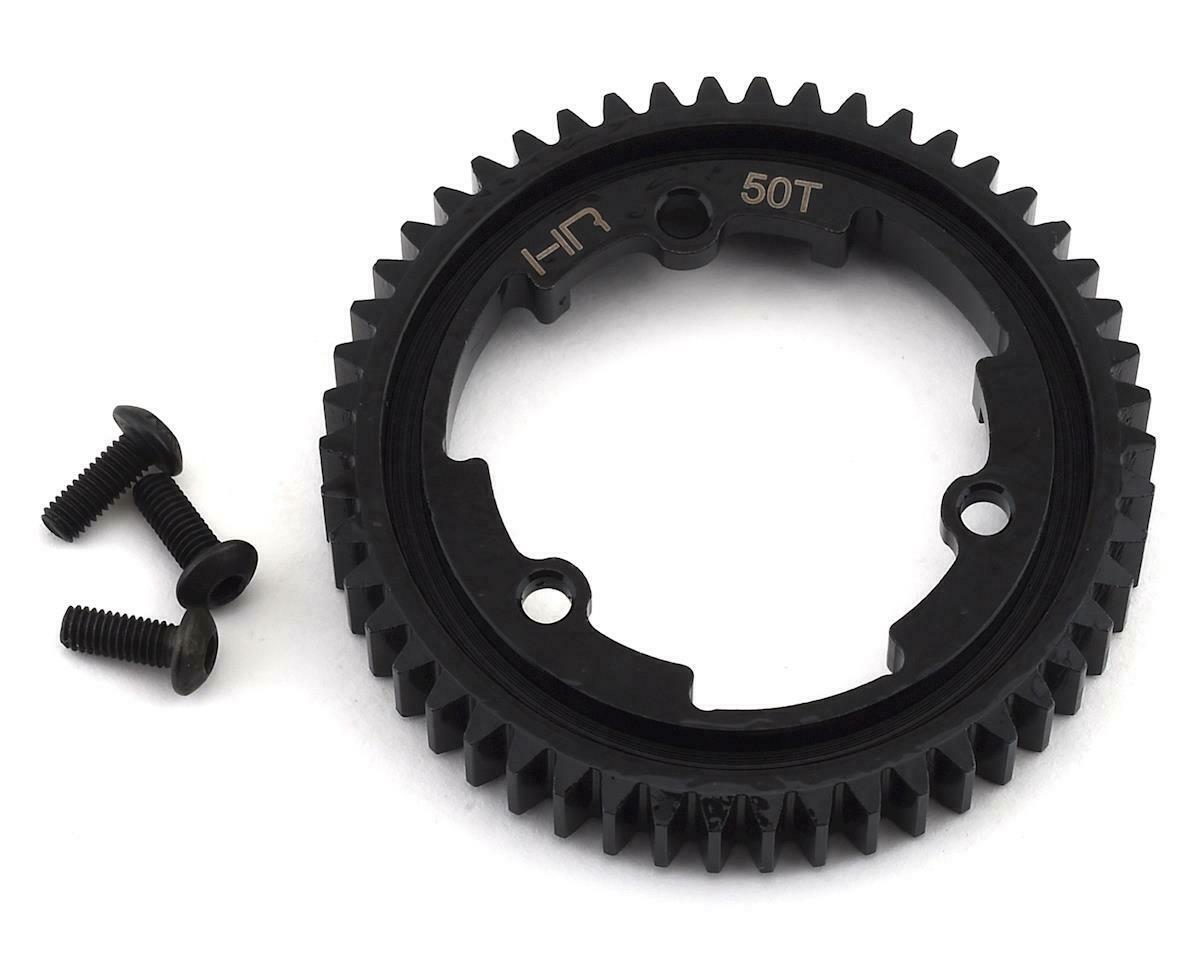

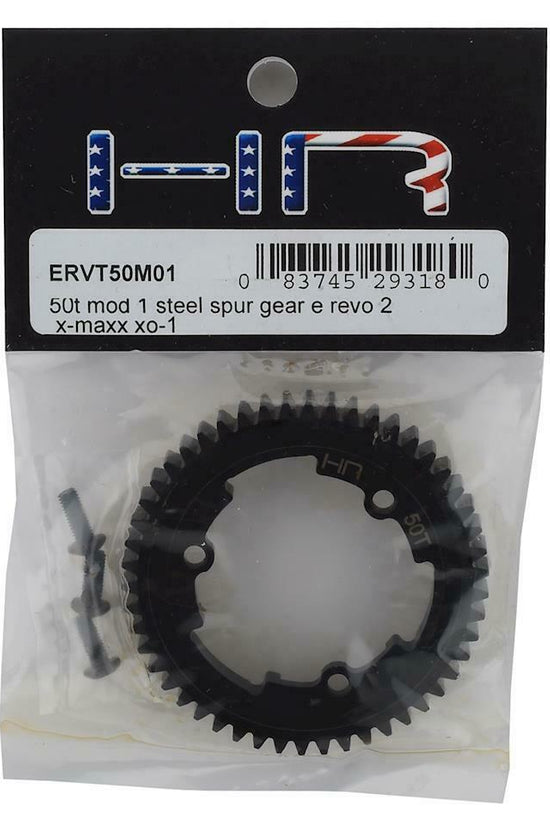

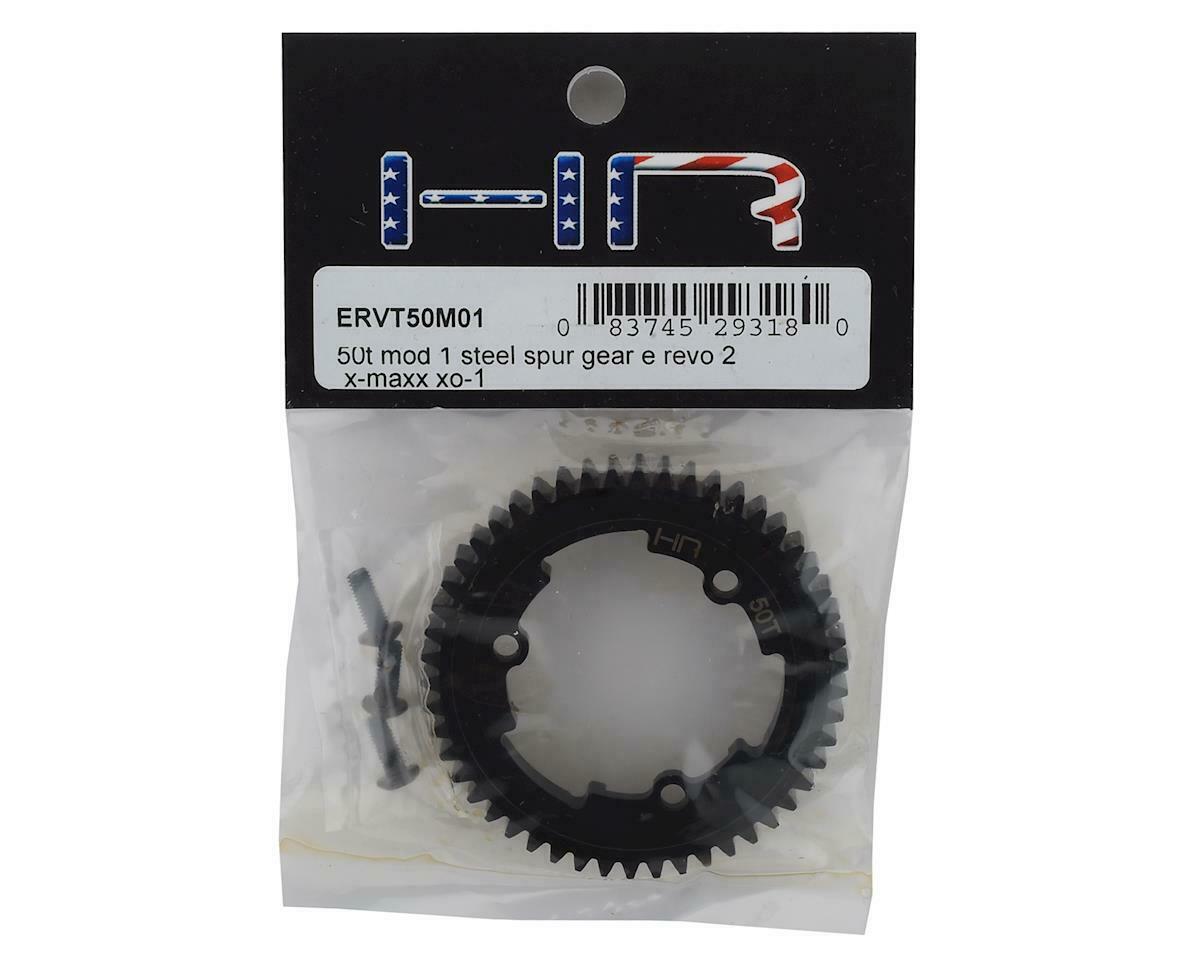

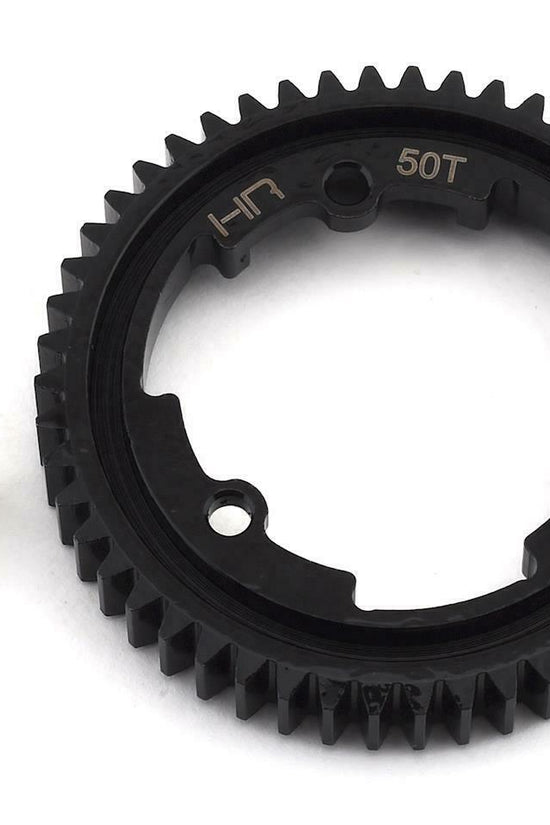

The Hot Racing 50 tooth hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S and XO-1 models.
NOTE:
- Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
- With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
- CNC machined hardened steel construction
- Black oxide finished
- Laser etched tooth count marking
- Upgrade for factory plastic TRA6448 or TRA6448X 54T spur gear
Specifications:
One (1) 50T, 1 mod steel spur gear
Overall diameter: 52.8mm
Gear face width: 8mm
Gear face width: 8mm
Includes:
